Durable Air Ventilation Blowers Dual Voltage Power Source 12VDC And 230VAC
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Housing | Die Casted | Control Method | Remote Control And Manual Operation |
|---|---|---|---|
| Shaft | SUS304/#45 | Bearing | Ball Bearing |
| Standard | UL Standard | Insulation | Class F |
| Shaft Diameter | 12mm | Input Voltage | 230VAC And 12VDC |
| Output Power | 86W | Speeds Adjustable | 3 Speeds Optional |
| High Light | pedestal fan motor,ceiling fan motor |
||
Product Description

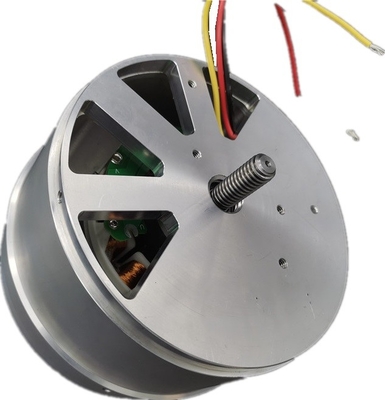

Durable Air Ventilation Blowers Dual Voltage Power Source 12VDC And 230VAC
Dual Voltage AC/DC Motor
BIG Advantages:
Low Noise: Negligible noise comparing to Brushed DC Motors
Durable Life: Long life over 20000hrs.
Energy Saving: comparing to PSC motors and induction motors over 30% energy saving
Direct Input: Connect with 230VAC or 12VDC Power Source directly
Product Information:
Model: W10020-23012
Voltage: 230VAC/50Hz or 12VDC
Markets Covered: Middle East ,Southeast Aisa and Middle Asia
Performance @230VAC/50Hz and 12VDC Input Power Source:
| Model | Speed Switch |
Performance | ||||
| Voltage(V) | Current(A) | Power(W) | Speed(RPM) | |||
| ACDC Dual Voltage Version (12VDC and 230VAC) |
1st. Speed | 12VDC | 2.443A | 29.3W | 947RPM | |
| 2nd. Speed | 12VDC | 4.25A | 51.1W | 1141RPM | ||
| 3rd Speed | 12VDC | 6.98A | 84.1W | 1340RPM | ||
| 1st. Speed | 230VAC | 0.279A | 32.8W | 942RPM | ||
| 2nd. Speed | 230VAC | 0.448A | 55.4W | 1142RPM | ||
| 3rd Speed | 230VAC | 0.67A | 86.5W | 1340RPM | ||
Reference Outline:
Manual Operation or Remote Control available.
Contact us today to custom design your desired motors.
