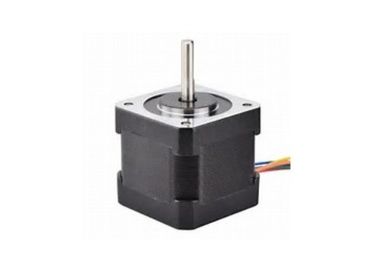

Low Vibration DC Stepper Motor Reistance 6.6 - 40Ω Flexible Length 20 / 44mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Voltage(V) | 2.64/12 | Current /Phase(A) | 0.16/0.8 |
|---|---|---|---|
| Reistance/Phase(Ω) | 6.6~40 | Inductance /Phase(MH) | 7.5~100 |
| Holding Torque(g.cm) | 650~2800 | Rotor Intertia(g-cm2) | 11.0~40.0 |
| Length（mm） | 20/44 | Weight(kg) | 0.12/0.28/0.35 |
| High Light | electric stepper motor,permanent magnet stepper motor |
||
Product Description
35BYG1.8 Precise Stepper Motor Step Angle 1.8° for automation control machines
Motor Basic Parameter:
Model Series: 35BYG1.8
Step Angle: 1.8°
Performance and Specification:
| Series and step angle | Model No. | Rated Voltage | Current /Phase |
Reistance/Phase | Inductance /Phase |
Holding Torque | Leads Qty. | Rotor Intertia | Weight | Length | |
| 35BYG1.8 | Single Shaft | Double Shaft | V | A | Ω | MH | g.cm | g-cm2 | Kg | mm | |
| ST14HM20-04-04A | ST14HM20-04-04B | 12 | 0.4 | 25 | 500 | 4 | 8.0 | 0.1 | 20 | ||
| ST14HM26-08-04A | ST14HM26-08-04B | 3.2 | 0.8 | 4.8 | 500 | 4 | 10.0 | 0.12 | 26 | ||
| ST14HM28-075-04A | ST14HM28-075-04B | 3.2 | 0.75 | 4.3 | 700 | 4 | 10.0 | 0.14 | 28 | ||
| ST14HM28-05-04A | ST14HM28-05-04B | 12 | 0.5 | 20 | 1000 | 4 | 10.0 | 0.14 | 28 | ||
| ST14HM34-04-06A | ST14HM34-04-06B | 12 | 0.4 | 25 | 1000 | 6 | 14.0 | 0.17 | 34 | ||
For more details, please ask us for drawing and performance via email: rsgrivic@126.com
Drawing:
