Clean Surface AC Synchronous Motor PSC Electric Motor Replacing Fasco Fans

Place of Origin China
Brand Name Retek
Certification CCC,UL
Model Number 3.3" PSC Motors
Minimum Order Quantity 1000pcs
Price Negotiable
Packaging Details 20PCS/Carton
Delivery Time 21days
Payment Terms T/T, Western Union
Supply Ability 20000PCS/Month
Product Details
Optional Voltage AC115V/230V Powers 20W~60W
Application Fans, Blowers And Ventilation Device Custom Made Accept Custom-Made
Pricing Competitive Original China
Dimension 3.3"
High Light

synchronous electric motor

,

small synchronous motor

Leave a Message
Product Description

Clean Surface AC Synchronous Motor PSC Electric Motor Replacing Fasco Fans



It is particularly developed for future energy saving blowers and fans used in North American and European markets.



Product introduction

3.3 inch EC motors are designed with two versions:

(1) 16 speeds version implemented by dip-switch OEM factories can adjust them in house.

(2) Constant airflow version which OEM factories can adjust the motor via AirVent software in Android or Windows.



Typical Application:

Blowers, Fans, Ventilation Facilities



Key Features:
- Perfect drop-in replacement of 3.3” PSC motors
- Controller embedded connecting to power source 120VAC/230VAC directly.
- Built by UL standards and now under UL certification procedures.
- Power range 20W~Max. 200W.
- Efficiency over 80%, MORE energy saving.



Typical Specification:

Voltage 115VAC/230VAC
Output Power 15~100 watts
Duty S1,
Speed Range up to 3,000 rpm
Operational Temperature -20°C to +40°C
Insulation Grade Class B, Class F,
Bearing Type sleeve bearings, ball bearings optional.
Optional shaft material #45 Steel, Stainless Steel,
Housing Type Air Ventilated, Plastic Housing
Rotor feature Inner rotor brushless motor
Certification UL, CSA, ETL,CE

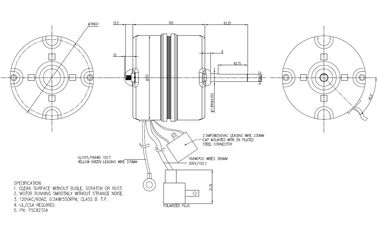

Drawing :

Clean Surface AC Synchronous Motor PSC Electric Motor Replacing Fasco Fans 0

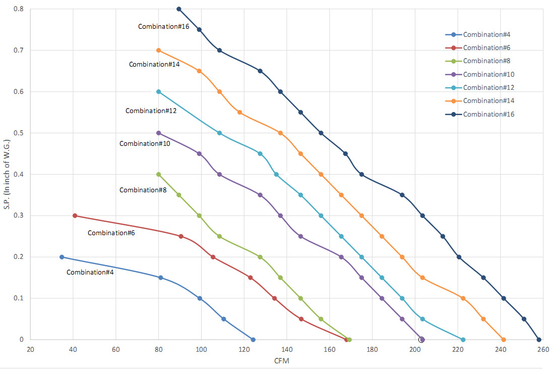

Typical Performance:



Clean Surface AC Synchronous Motor PSC Electric Motor Replacing Fasco Fans 1
