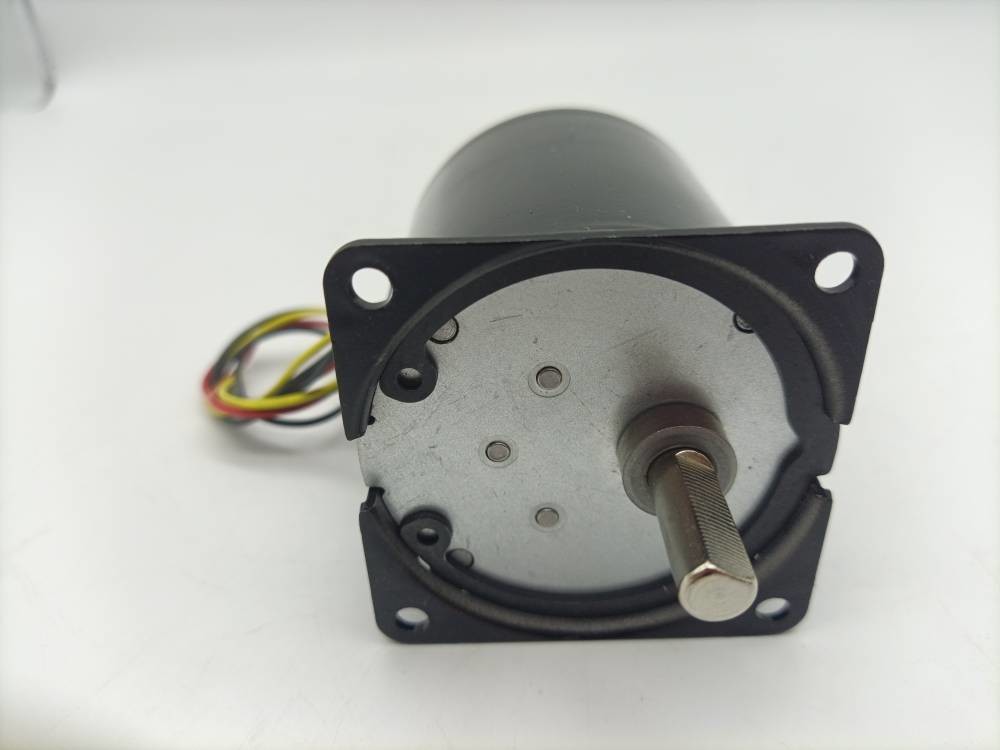

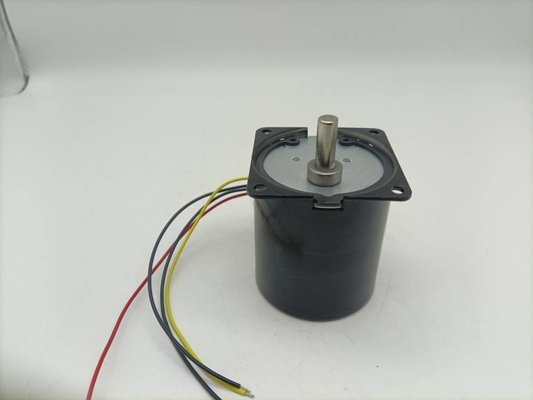

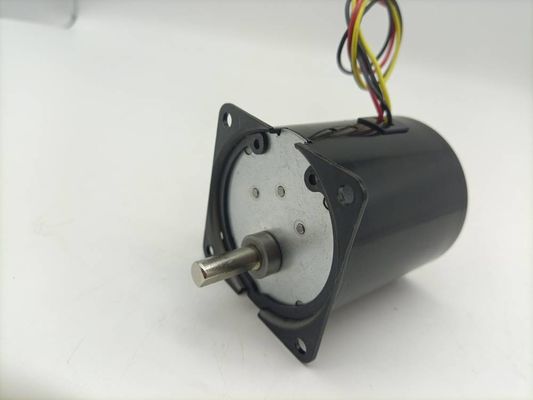

Stainless Steel Synchronous Motor SM6068 20 - 30rpm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage Range | 24VAC | Frequency | 50Hz |
|---|---|---|---|
| Speed | 20~30rpm | Operational Temperature | <110°C |
| Insulation Grade | Class B | Bearing Type | Sleeve Bearings |
| Optional Shaft Material | #45 Steel, Stainless Steel | Housing Type | Metal Sheet, IP20 |
| High Light | Stainless Steel AC Synchronous Motor,Synchronous Motor SM6068,24VAC Synchronous Motor |
||
Product Description
Synchronous Motor -SM6068
This small Synchronous Motor is provided with a stator winding wound around a stator core ,which with high reliability, high efficiency and can continuously work. It is widely used in automation industry,logistics, assembly line and etc.
Typical Application:
Auto-testing equipment ,Medical equipment,Textile machines,Heat exchanger,Cryogenic pump etc.
Features:
Low Noise,Quick respond,Low noise,Stepless speed regulation, Low EMI, Long life,
Performance:
| Items | Model | |||
| SM6068EC-245025 | SM6068EC-246025 | SM6068EC-245030 | SM6068EC-246030 | |
| Voltage | 24VAC | 24VAC | 24VAC | 24VAC |
| Frequency | 50Hz | 60Hz | 50Hz | 60Hz |
| Rated speed | 25 ± 1 RPM | 25 ± 1 RPM | 30 ± 1 RPM | 30 ± 1 RPM |
| Stall torque | > 12Kgf.cm | > 12Kgf.cm | > 10Kgf.cm | > 10Kgf.cm |
| Wire length | 200mm | 200mm | 160mm | 160mm |
| Stripped length | 10mm | 10mm | 10mm | 10mm |
Drawing :
FAQ
1. What are your prices?
Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.
2.Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.
3.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4.What is the average lead time?
For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
