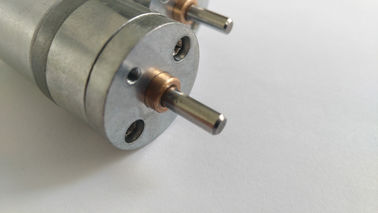

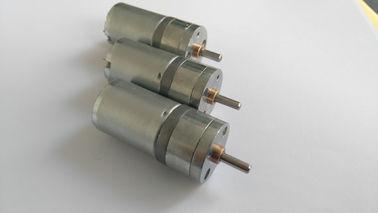

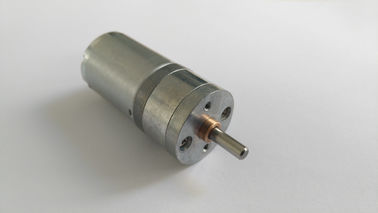

D2530PLG 12V Gear Motor High Torque , Planetary Gear Motor For Actuators

  • D2530PLG 12V Gear Motor High Torque , Planetary Gear Motor For Actuators
  • D2530PLG 12V Gear Motor High Torque , Planetary Gear Motor For Actuators
  • D2530PLG 12V Gear Motor High Torque , Planetary Gear Motor For Actuators
  • D2530PLG 12V Gear Motor High Torque , Planetary Gear Motor For Actuators
  • D2530PLG 12V Gear Motor High Torque , Planetary Gear Motor For Actuators
Place of Origin China
Brand Name Retek
Certification CCC,UL
Model Number D2530PLG
Minimum Order Quantity 1000pcs
Price Negotiable
Packaging Details 150PCS/Carton
Delivery Time 14days
Payment Terms T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optional Voltage DC 3V/6V/12V/24V Powers 2W~20W
Custom Made Accept Custom-Made Pricing USD25~USD60.00
Original China
High Light

right angle gear motor

,

high torque gear motor
Leave a Message
Product Description

D2530PLG: DC Gearmotors for Automatic Doors,Automobiles,Actuators and Automated Devices.





Typical Application:

Gearmotor, linear actuator,power tool,automated devices



Features:

Low Noise, Long lifespan, Cost less and Save more for your benefits.



Drawing:

D2530PLG 12V Gear Motor High Torque , Planetary Gear Motor For Actuators 0



Technical Performances:

Motor Performance:

TYPE Rated
voltage
VDC		 No-load
speed
r/min		 No-load
current
mA		 Rated
speed
r/min		 Rated
torque
mN.m		 Output
power
W		 Rated
current
mA		 Stall
torque
mN.m		 Stall
current
A
D2453-1230 12 3000 120 2200 10 2.3 450 38 0.93
D2453-1250 12 5000 200 3800 15 5.8 900 62 2.7
D2453-1276 12 7600 360 6100 15 9.4 1450 70 4.97



Gearmotor Technical Performance:

Reduction ratio 3.7 5.2 14 19 27 51 71 100 139 189 264
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4
(L) Length(L) mm 25.4 25.4 34 34 34 42.5 42.5 42.5 42.5 50.8 50.8
No-load speed r/min 809 579 214 158 111 59 42 30 22 16 11
Rated speed r/min 593 425 157 116 81 43 31 22 16 12 8.3
Rated torque N.m 0.03 0.05 0.11 0.15 0.22 0.37 0.52 0.73 1 1.2 1.5
N.m
Max. permissible load in a short time		 0.6 0.6 1.8 1.8 1.8 3.6 3.6 3.6 3.6 4.5 4.5



For custom made, please feel free to contact us today.
