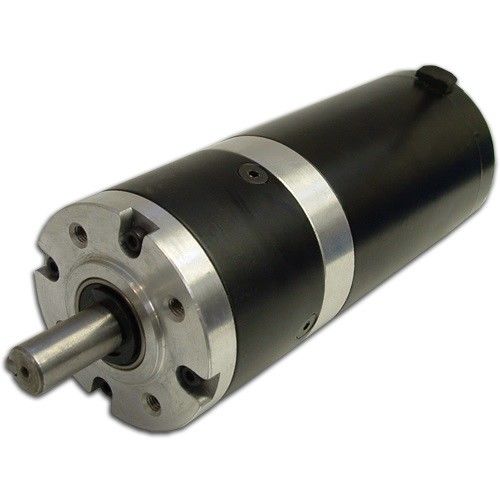

10 Watt Power DC Gear Motor Long Lifespan For Automatic Doors D6075PLG
D6075PLG: DC Gearmotors for Automatic Doors, Automobiles, Actuators and Automated Devices
This product is a compact high efficient brushed DC motor, magnet ingredient consist of NdFeB(Neodymium Ferrum Boron) which greatly enhance the efficiency comparing to others available motors in the market.
Typical Application:
Gearmotor, linear actuator,power tool,automated devices
Features:
Low Noise, Long lifespan, Cost less and Save more for your benefits.
Motor Technical Data:
| TYPE | Rated voltage VDC |
No-load speed r/min |
No-load current A |
Rated speed r/min |
Rated torque m.Nm |
Output power W |
Rated current A |
Stall torque m.Nm |
Stall current A |
| D6075-2412 | 24 | 1200 | 0.16 | 890 | 40 | 3.7 | 0.43 | 0.15 | 1.1 |
| D6075-2420 | 24 | 2000 | 0.3 | 1500 | 35 | 5 | 0.8 | 0.19 | 2.4 |
| D6075-2430 | 24 | 3000 | 0.4 | 2500 | 40 | 10 | 1.1 | 0.26 | 5 |
Gear motor Technical Data:
| Reduction ratio | 3.6 | 4.25 | 13 | 15 | 18 | 47 | 55 | 65 | 76 | 168 | 198 | 234 | 276 | 326 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
| (L) Length(mm) | 34.5 | 34.5 | 45.8 | 45.8 | 45.8 | 57.1 | 57.1 | 57.1 | 57.1 | 68.4 | 68.4 | 68.4 | 68.4 | 68.4 |
| No-load speed (r/min) | 333 | 282 | 92 | 80 | 67 | 25 | 22 | 18 | 16 | 7.1 | 6.1 | 5.1 | 4.3 | 3.7 |
| Rated speed (r/min) | 247 | 209 | 68 | 59 | 49 | 19 | 16 | 14 | 12 | 5.3 | 4.5 | 3.8 | 3.2 | 2.7 |
| Rated torque (mN.m) | 0.14 | 0.16 | 0.47 | 0.54 | 0.65 | 1.6 | 1.9 | 2.2 | 2.6 | 5.4 | 6.4 | 7.6 | 8.9 | 10.6 |
| mN.m Max. permissible load in a short time |
6 | 6 | 25 | 25 | 25 | 50 | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 60 |
Drawing:
FAQ
1. What are your prices?
Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.
2.Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.
3.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4.What is the average lead time?
For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
|
|
