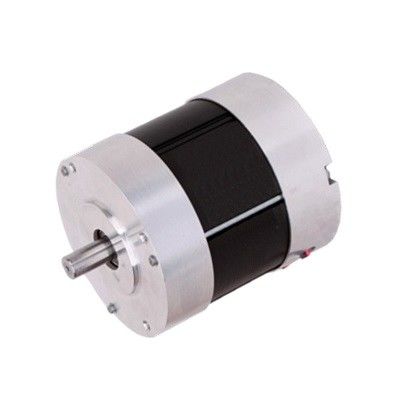

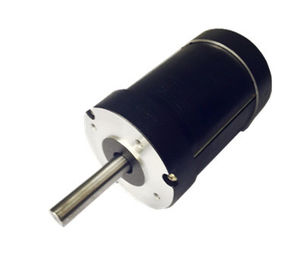

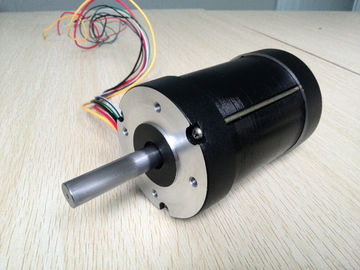

Round Brushless DC Electric Motor In Automation Faciltiies W80 Series Flexible Length

Place of Origin China
Brand Name Retek
Certification CCC,UL
Model Number W80 Series
Minimum Order Quantity 1000pcs
Price Negotiable
Packaging Details 6PCS/Carton
Delivery Time 14days
Payment Terms T/T, Western Union
Supply Ability 5000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wind Type Delta/ Star Connection Number Of Poles/Phase 4/3
Hall Effect Angle 120° Shaft Run Out 0.025mm
Dielectric Strength 500 VDC For One Minute Environmental Conditions -10-40℃
Magnent Material Bonded NdFeB Insulation B
High Light

high efficiency brushless motor

,

brushless dc servo motor

Leave a Message
Product Description

φ80mm OD: W80 round shape Brushless DC motors for automation faciltiies, blowers





Typical Application:



Big Fans, Mobility,cars, automatic doors, liquid dispense and rotary diaphragm pump drives, robotics and agricultural and light industrial applications.





Drawing:



Round Brushless DC Electric Motor In Automation Faciltiies W80 Series Flexible Length 0





Performances:



Model W8063 W8083 W80103
Voltage V   24
No load speed rpm ±10% 4200 4200 4200
Rated torque Nm   0.25 0.5 0.75
Rated Speed rpm ±10% 3000 3000 3000
Rated Current A ±10% 5.2 10.5 15
Rated Power W   79 157 236
Back-EMF constant V/Krpm ±10% 9.1 9.3 9.6
Torque Constant Nm/A ±10% 0.06 0.052 0.05
Resistance ohm   0.5 0.43 0.35
Weight Kg   1.1 1.4 1.8
Length mm   63 83 103





For custom made, please feel free to contact us today.
