| Brand Name: | Retek |
| Model Number: | Brushless motor-W4249A |
| MOQ: | 1000pcs |
| Price: | Negotiable |
| Delivery Time: | 14days |

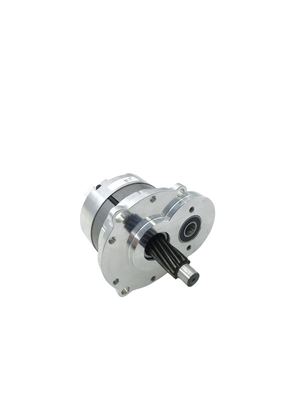

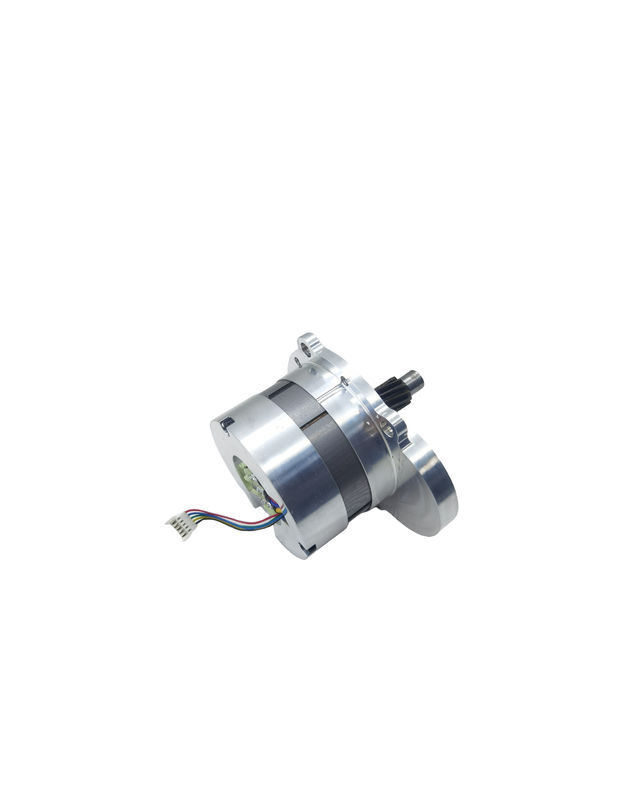

Brushless motor-W4249A
This brushless motor is ideal for stage lighting applications. Its high efficiency minimizes power consumption, ensuring extended operation during performances. The low noise level is perfect for quiet environments, preventing disruptions during shows. With a compact design at only 49mm in length, it integrates seamlessly into various lighting fixtures. The high-speed capability, with a rated speed of 2600 RPM and a no-load speed of 3500 RPM, allows for quick adjustments of lighting angles and directions. The internal drive mode and inrunner design ensure stable operation, reducing vibrations and noise for precise lighting control.
PRODUCT DETAILS
Production introduction
This brushless motor is perfectly suited for stage lighting systems. It operates efficiently in a wide temperature range from -20°C to +40°C, making it versatile for both indoor and outdoor events. With excellent insulation properties, including a dielectric strength of 600VAC and an insulation resistance of 500V, it ensures safe and reliable performance under high voltage conditions. The high peak current of 3A and peak torque of 0.14mN.m provide powerful output for quick, dynamic lighting adjustments. Its low no-load current of only 0.2A significantly reduces energy consumption when the motor is idle, enhancing overall energy efficiency. Additionally, with Class B and Class F insulation ratings, this motor offers superior heat resistance and longevity, reducing maintenance needs and ensuring consistent performance in demanding stage environments. These features make it an exceptional choice for dynamic, reliable, and efficient stage lighting solutions.
General Specification:
Application:
Stage lighting systems,electric drills,camera drones and etc.
Dimension:
Parameters
| Items | Unit | Model |
| W4249A | ||
| Rated Voltage | VDC | 12 |
| Rated Torque | mN.m | 35 |
| Rated Speed | RPM | 2600 |
| Rated Power | W | 9.5 |
| Rated Current | A | 1.2 |
| No Load Speed | RPM | 3500 |
| No Load Current | A | 0.2 |
| Peak Torque | mN.m | 0.14 |
| Peak Current | A | 3 |
FAQ
1. What are your prices?
Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.
2.Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.
3.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4.What is the average lead time?
For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
|
|
