Outer rotor motor-W6430

Place of Origin China
Brand Name Retek
Certification CE, ETL, CAS, UL
Model Number W6430
Minimum Order Quantity 1000pcs
Price Negotiable
Packaging Details 15PCS/Carton
Delivery Time 14days
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Voltage 40VDC Rotation Directio CW
Duty S1 Load Performance 10500RPM/30A
Operational Temperature -20°C To +40°C Original China
Leave a Message
Product Description

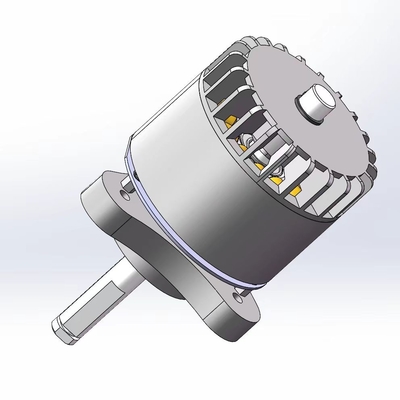

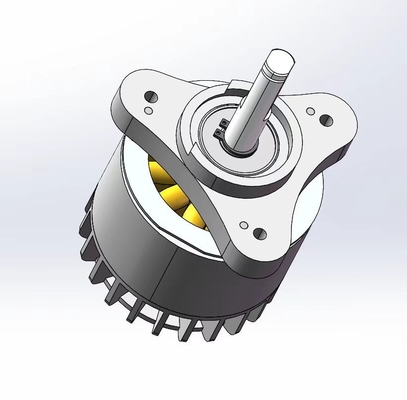

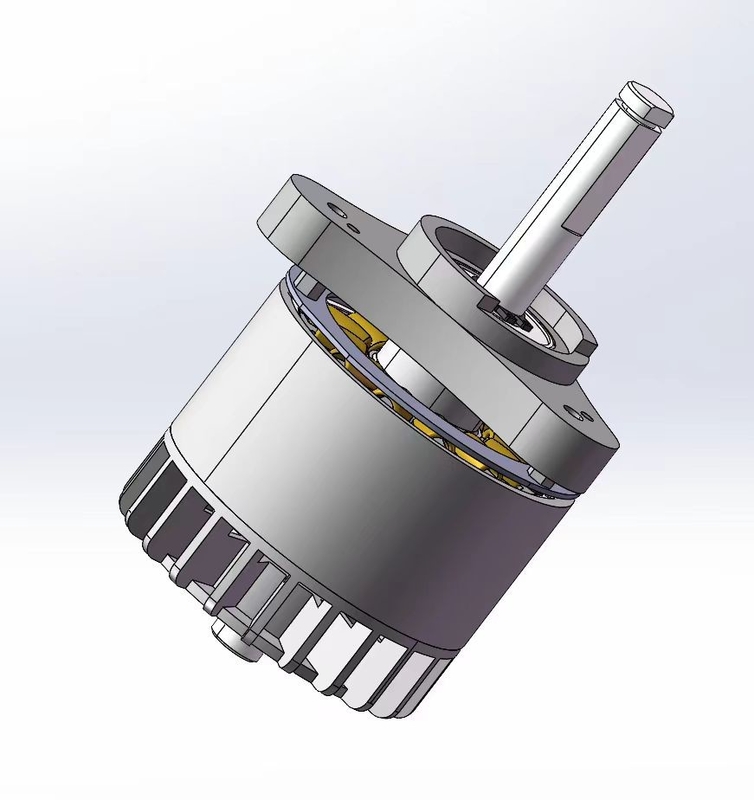

Outer rotor motor-W6430



The outer rotor motor is an efficient and reliable electric motor widely used in industrial production and household appliances. Its core principle is to place the rotor outside the motor. It uses an advanced outer rotor design to make the motor more stable and efficient during operation. The outer rotor motor has a compact structure and high power density, allowing it to provide greater power output in a limited space. It also has low noise, low vibration and low energy consumption, making it perform well in a variety of application scenarios.



External rotor motors are widely used in wind power generation, air conditioning systems, industrial machinery, electric vehicles and other fields. Its efficient and reliable performance makes it an indispensable part of various equipment and systems.



PRODUCT DETAILS



Production introduction



The design of the outer rotor motor uses advanced materials and manufacturing processes to ensure its high quality and long life. It usually uses permanent magnet synchronous motor technology, which has high efficiency and precise control capabilities, and can meet various complex industrial needs. At the same time, the outer rotor motor also has good thermal characteristics and high temperature resistance, and is suitable for long-term operation in high temperature environments.



In general, outer rotor motors have become the preferred motor in various application scenarios due to their high efficiency, reliability and stability. Its advanced design and superior performance make it widely used in industrial production and household appliances. With the continuous advancement of technology and the growth of market demand, outer rotor motors will play an increasingly important role in future development.



General Specification:

  • Operating Voltage: 40VDC
  • No-load Performance: 12000RPM/5.5A
  • Load Performance: 10500RPM/30A
  • Rotation Direction: CW
  • Core Material: SUS420J2
  • Core Hardness: 50-55HRC
  • High Post Test: AC500V(50HZ)/5mA/SEC
  • Insulation Resistance:10MΩ/500V/1SEC



Application:

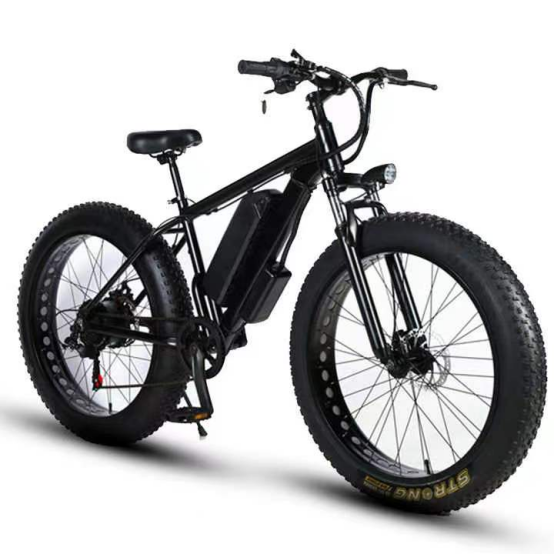

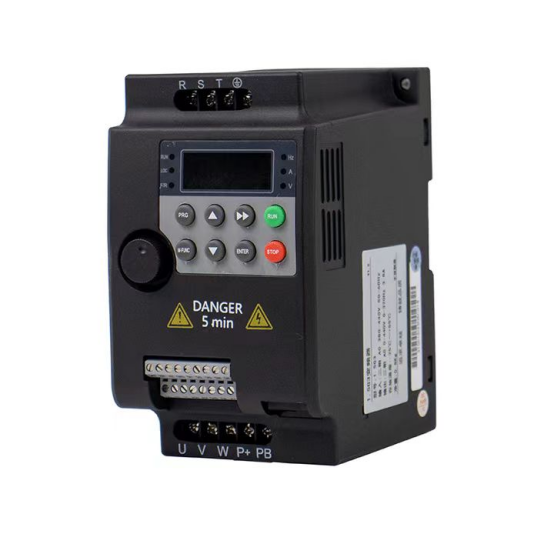

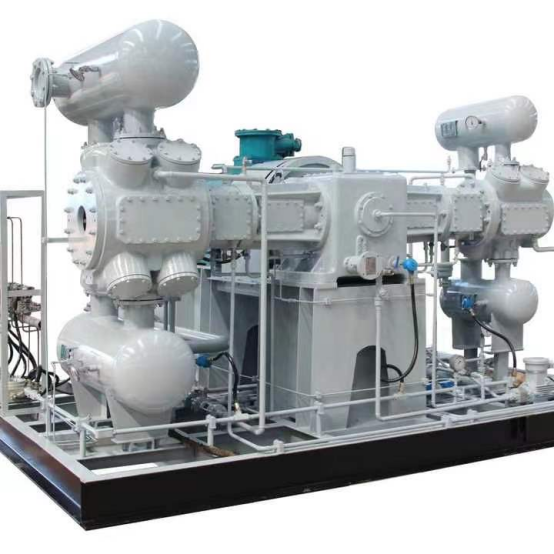

Compressor, inverter motor, electrical bike and etc.

Outer rotor motor-W6430 0

Outer rotor motor-W6430 1

Outer rotor motor-W6430 2

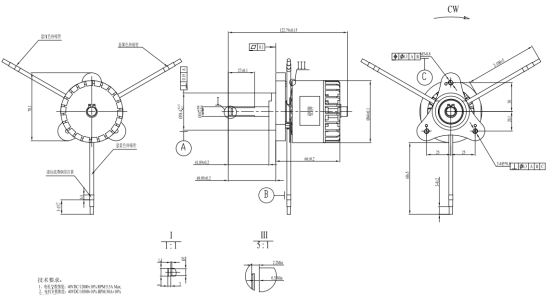

Dimension:



Outer rotor motor-W6430 3



Parameters

Items Unit Model
W6430
Rated voltage V 40(DC)
No-load speed RPM 12000
Rated Speed RPM 10500
Rotation Direction / CW
Core Hardness HRC 50-55
Core Material / SUS420J2
Insulation resistance MΩ Min/V 10/500
High Post Test V/mA/SEC 500(50HZ)/5



FAQ

1. What are your prices?

Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.

2.Do you have a minimum order quantity?

Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.

3.Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

4.What is the average lead time?

For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

5.What kinds of payment methods do you accept?

You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
