| Brand Name: | Retek |
| Model Number: | W130310 |
| MOQ: | 1000pcs |
| Price: | Negotiable |
| Delivery Time: | 14days |
| Payment Terms: | T/T, Western Union |

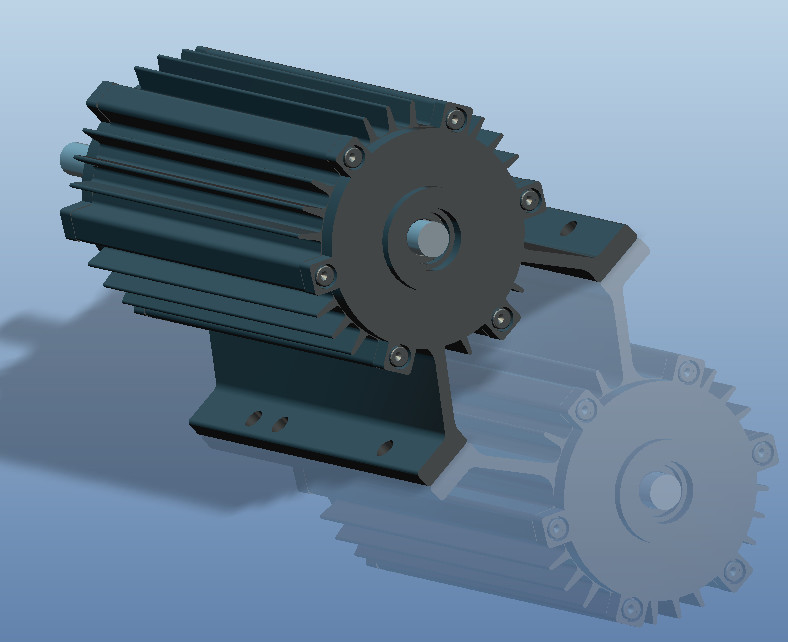

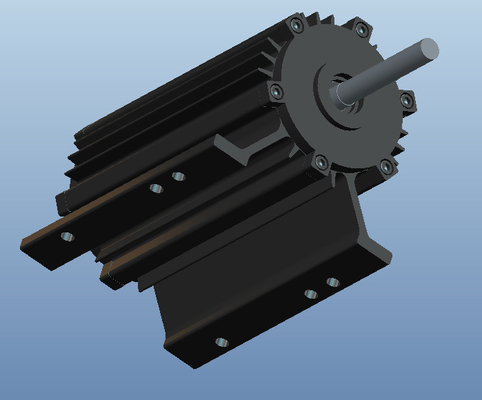

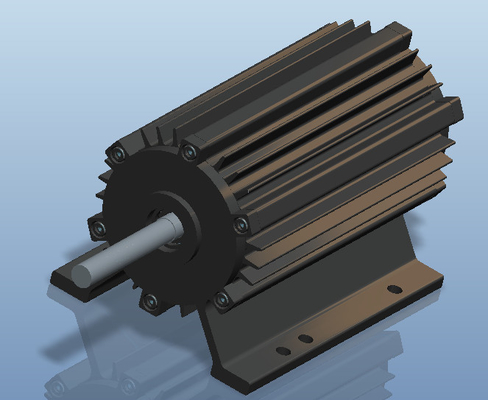

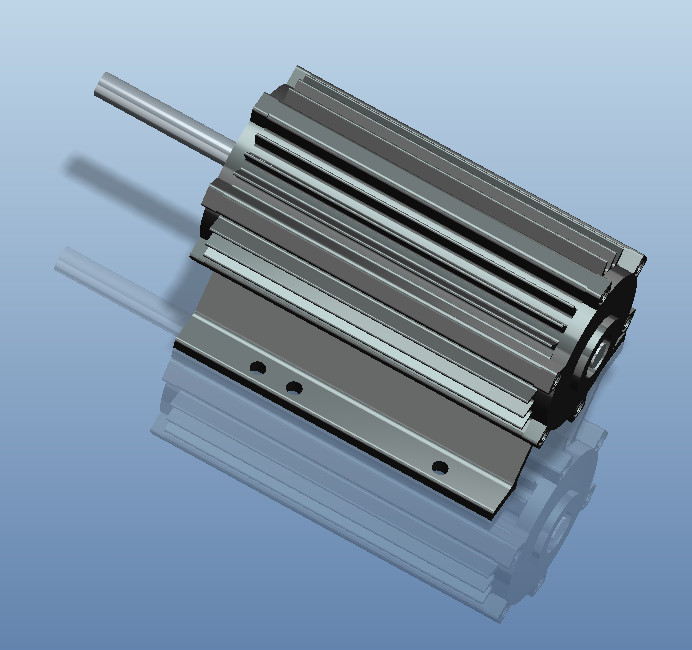

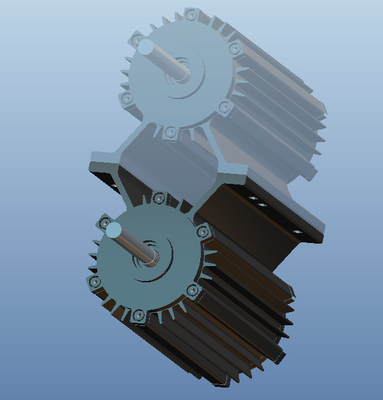

Economical BLDC Motor
This W130 series brushless DC motor(Dia. 130mm), applied rigid working circumstances in automotive control and commercial use application.
This brushless motor is designed for air ventilators and fans, its housing is made by metal sheet with air vented feature, the compact and lightweight design is more conducive to the application of axial flow fans and negative pressure fans
Typical Application:
Industry ventilation, HVAC, air coolers, standing fans, bracket fans,air purifiers, range hood, and etc.
Performance:
| Items | Unit | Model |
| W130310-230B | ||
| Phase | PHS | 3 |
| Voltage | VDC | 310 |
| No-load speed | RPM | REF |
| No-load current | A | REF |
| Rated speed | RPM | 1400 |
| Rated power | W | 700 |
| Rated torque | N.m. | 4.8 |
| Rated current | A | 3.2 |
| Insulating strength | VAC | 1500 |
| IP class | IP55 | |
| Insulation class | H |

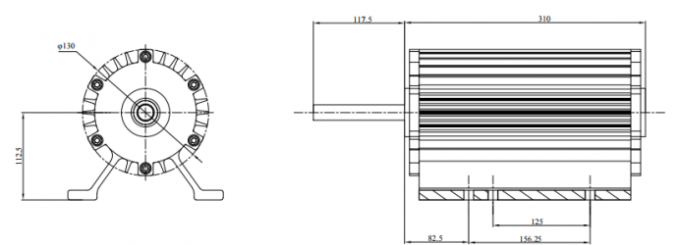

Drawing :
FAQ
1. What are your prices?
Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.
2. Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.
3. Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4. What is the average lead time?
For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5. What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
|
|
