Intelligent Robust BLDC Motor

Place of Origin China
Brand Name Retek
Certification CCC,UL
Model Number W4260PLG4240
Minimum Order Quantity 1000pcs
Price Negotiable
Packaging Details 8PCS/Carton
Delivery Time 14days
Payment Terms T/T, Western Union
Supply Ability 1000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Optional Voltage 12VDC,24VDC Powers 15~100 Watts
Duty S1, S2 Output Up To 9,000 Rpm
Operational Temperature -20°C To +40°C Insulation Grade Class B, Class F
Leave a Message
Product Description

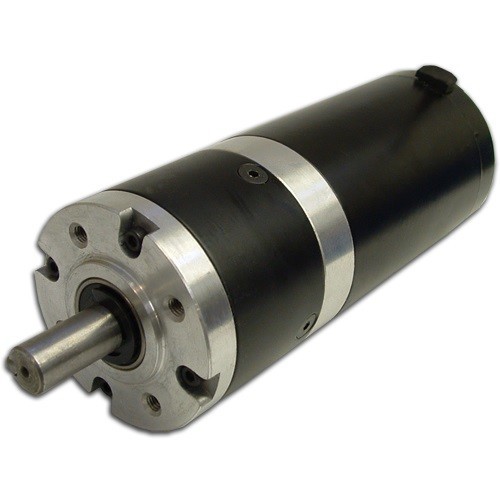

Intelligent Robust BLDC Motor


This W42 series brushless DC motor applied rigid working circumstances in automotive control and commercial use application. Compact feature widely used in automotive fields.


Typical Application:


Robot,Table CNC machines,Cutting machines, dispensers, printers,paper counting machines, ATM machines and etc.


Product Introduction

Brushless DC motor technology offer several advantages including high torque to weight ratio, increased efficiency and reliability, reduced noise and longer lifetime compared to brushed DC motors. Retek motion offers a wide variety of high quality BLDC motors technologies such as Slotted, Flat and low voltage motors in sizes from 28 to 90mm diameter. Our brushless DC motors offer high torque density and high volume capabilities and all of our models can be customized to fulfill your specific requirements.




Items Unit Model
Voltage VDC 24
No-load current AMPs 0.8
Rated Current AMPs 3.5
No-load speed RPM 265±%10
Rated Speed RPM 212±%10
Gear ratio   1/19
Torque N.m 1.6
Lifetime Hrs 6000


Drawing :


Intelligent Robust BLDC Motor 0




1. What are your prices?

Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.

2.Do you have a minimum order quantity?

Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.

3.Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

4.What is the average lead time?

For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

5.What kinds of payment methods do you accept?

You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
