xProduct Details
| Voltage | 12VDC,24VDC,130VDC,162VDC | Duty | S1, S2 |
|---|---|---|---|
| Speed | Up To 10,000 Rpm | Output | 15～100 Watts |
| Operational Temperature | -20°C To +40°C | Insulation Grade | Class B, Class F,Class H |
Product Description

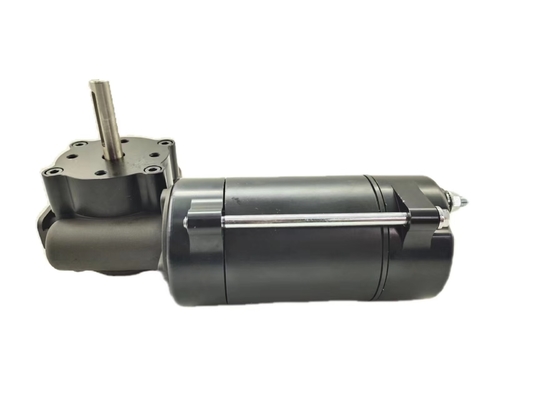

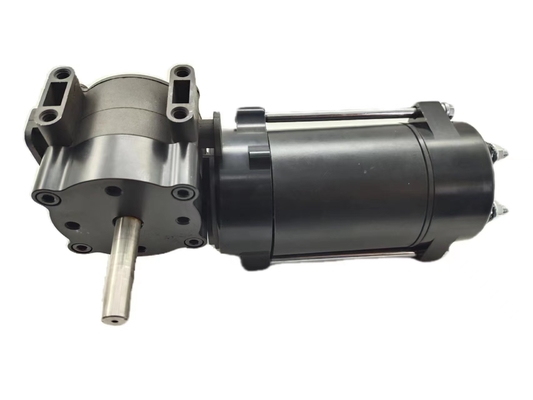

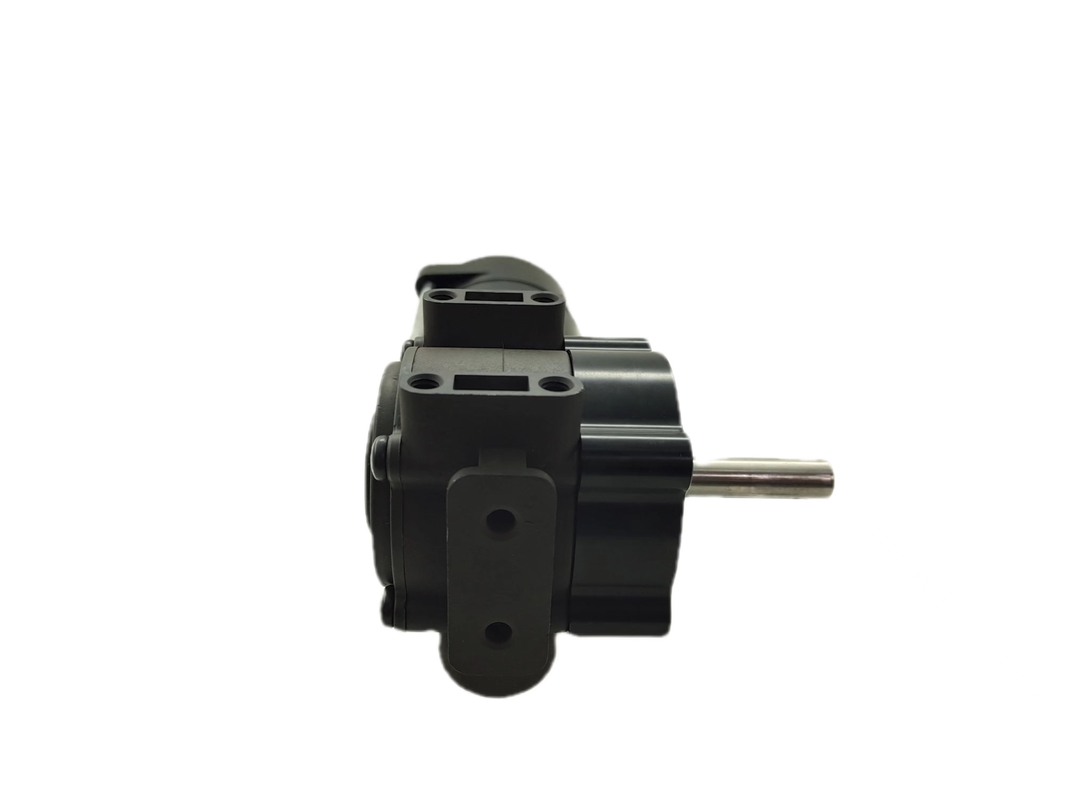

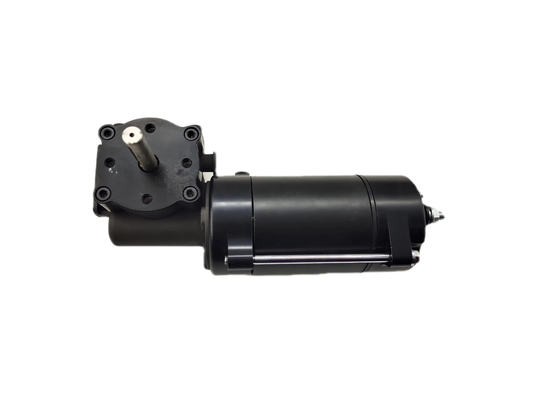

Powerful Yacht Motor
The motor body diameter 68mm equipped with planetary gearbox to generate robust torque, can be used in many fields such as yacht ,door openers, industrial welders and so on.
In harsh working condition, it can be also used for as lifting power source which we supply for speed boats.
It is also durable for harsh vibration working condition with S1 working duty, stainless steel shaft, and anodizing surface treatment with 1000 hours long life requirement requirements.
Typical Application:
Yacht,suction pump, window openers,diaphragm pump, vacuum cleaner,clay trap, electric vehicle, golf cart, hoist, winches
Product introduction:
Normally the standard configuration of the gear motor we adopt steel gears for conventional application such as door opener, window openers and so on, specifically we also choose the brass gears for heavy load application to increase the abrasive resistance.
Performance:
| Items | Unit | Model |
| D68160WGR30 | ||
| Voltage | VDC | 12 |
| Performance with gearhead: | ||
| P/N:D68160WGR30B-12 | ||
| Rated power | W | 140 |
| Rated speed | RPM | 55 |
| Rated torque | N.m. | 24 |
| P/N:D68160WGR30C-12 | ||
| Rated power | W | 350 |
| Rated speed | RPM | 55 |
| Rated torque | N.m. | 60 |
| Shaft | SUB303/304 | |
| Water proof | IP67 | |

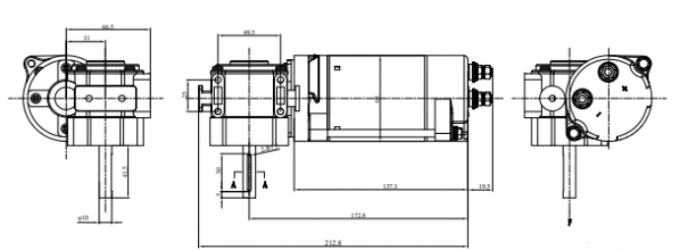

Drawing :

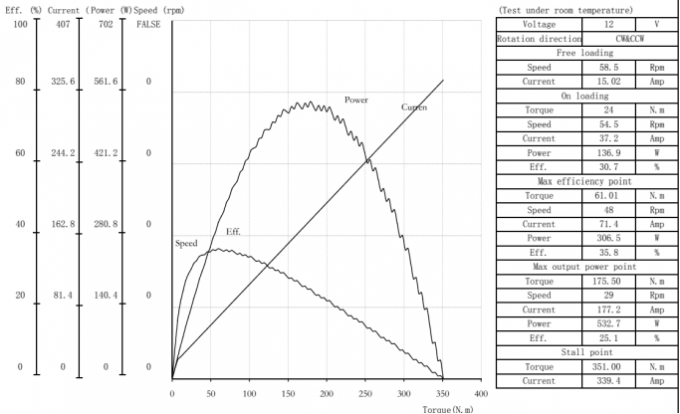

Typical Curve
FAQ
1. What are your prices?
Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.
2. Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.
3. Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4. What is the average lead time?
For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5. What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
