Smart Micro DC Motor For Coffee Machine Up To 10000 Rpm

Place of Origin China
Brand Name Retek
Certification CCC,UL
Model Number D4275A
Minimum Order Quantity 1000pcs
Price USD7.5~USD25.00
Packaging Details 6PCS/Carton
Delivery Time 14days
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Voltage Range 12VDC,24VDC,130VDC,162VDC Output Powers 15~100 Watts
Speed Range Up To 10,000 Rpm Duty S1, S2
Operational Temperature -20°C To +40°C Insulation Grade Class F, Class H
Bearing Type Ball Bearing, Sleeve Bearing Original China
High Light

Coffee Machine Micro DC Motor


Smart Micro DC Motor


Micro DC Motor For Coffee Machine

Leave a Message
Product Description

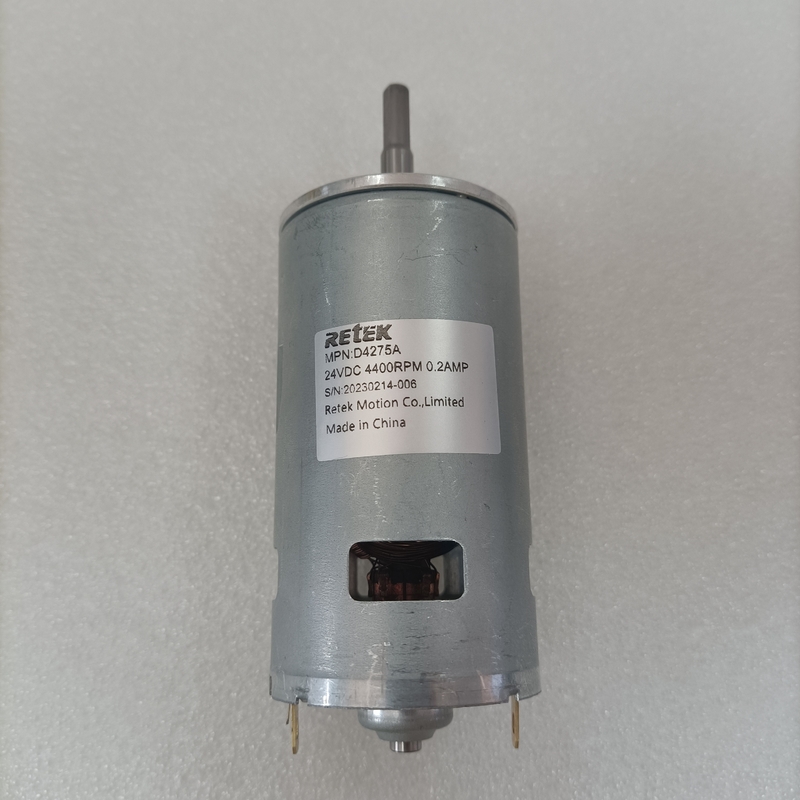

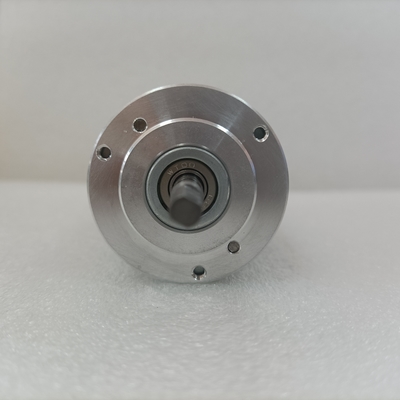

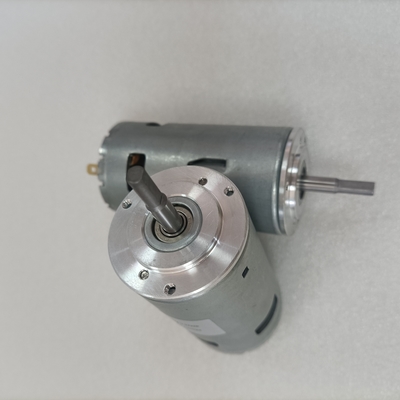

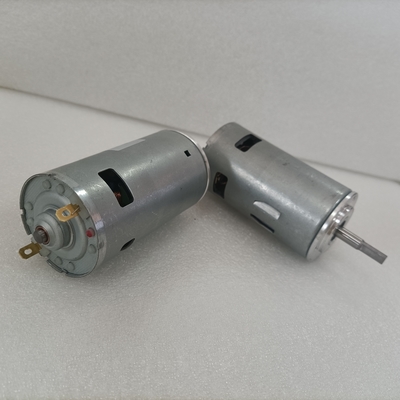

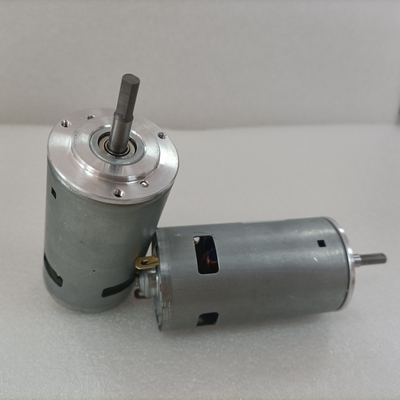

Smart Micro DC Motor for Coffee Machine


This D42 series brushed DC motor(Dia. 42mm) applied rigid working circumstances in smart devices with equivalent quality comparing to other big names but cost-effective for dollars saving.


It is reliable for precise working condition with S1 working duty, stainless steel shaft,with 1000 hours long life requirement requirements.


Product introduction


This product is a compact high efficient brushed DC motor, we offer two options of magnets: Ferrite and NdFeB. If choose magnet made by NdFeB(Neodymium Ferrum Boron) , it would provide much more robust power than others available motors in the market.


To pass EMI and EMC testing, adding capacitors is also a good choice if needed.

It is also durable for harsh vibration working condition with S1 working duty, stainless steel shaft, and powder coating surface treatment with 1000 hours long life requirements and IP68 grade if necessary by water-proof shaft seals.


Typical Application:


coffee machine,suction pump, window openers,diaphragm pump, vacuum cleaner,clay trap, electric vehicle, golf cart, hoist, winches






Smart Micro DC Motor For Coffee Machine Up To 10000 Rpm 0



Smart Micro DC Motor For Coffee Machine Up To 10000 Rpm 1


1. What are your prices?

Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.

2.Do you have a minimum order quantity?

Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.

3.Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

4.What is the average lead time?

For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

5.What kinds of payment methods do you accept?

You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
