12VDC 48VDC / 230VAC Economical BLDC Motor up to 4000 rpm

Place of Origin China
Brand Name Retek
Certification CCC,UL
Model Number W80155A
Minimum Order Quantity 10pcs
Packaging Details by sea,by air
Delivery Time 3~4 weeks
Payment Terms Western Union, T/T, L/C
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Duty S1, Voltage Range 12VDC,48VDC/230VAC
Output Power 15~100 Watts Speed Range Up To 4,000 Rpm
Operational Temperature -20°C To +40°C Insulation Grade Class B, Class F
Bearing Type Sleeve Bearings, Ball Bearings Optional. Original China
High Light

4000 Rpm BLDC Motor


Economical BLDC Motor


230VAC BLDC Motor

Leave a Message
Product Description

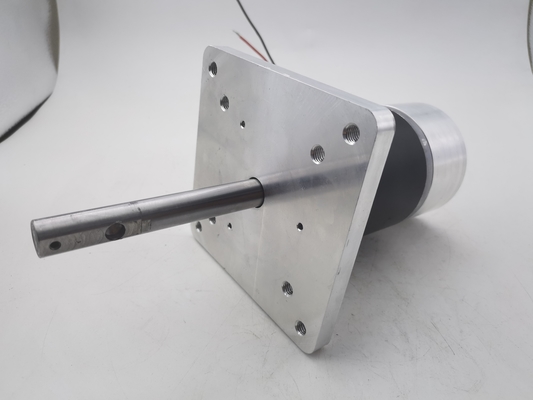

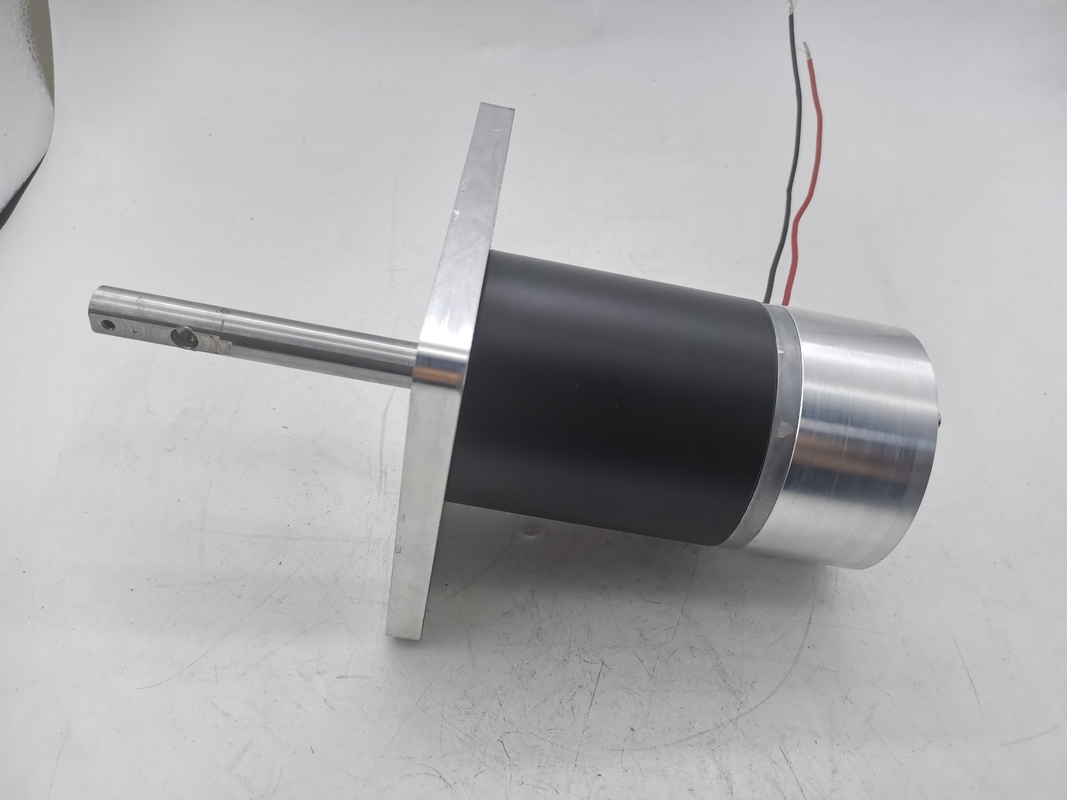

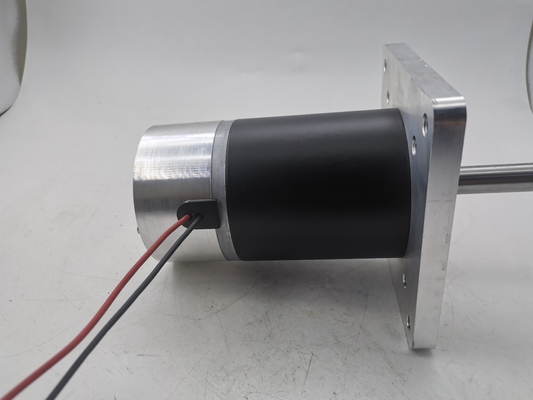

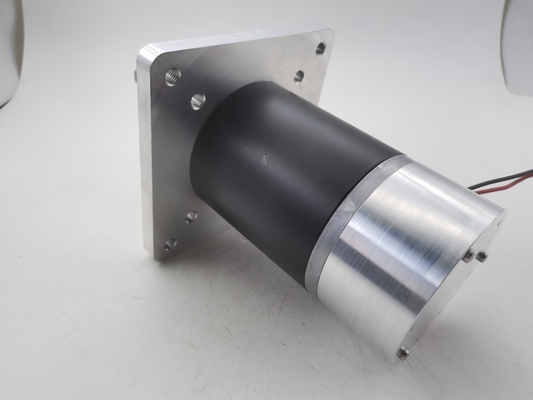

Economical BLDC Motor


This W80 series brushless DC motor(Dia. 80mm) applied rigid working circumstances in automotive control and commercial use application.


It is designed particularly for economic demand customers for their fans, ventilators, and air purifiers.


Product introduction


This brushless fan motor is designed for air ventilators and fans, its housing is made by metal sheet with air vented feature and can be used under DC power source or AC power source as well connected with AirVent integrated controller.




Blowers, air ventilators, HVAC, air coolers, standing fans, bracket fans and air purifiers and etc.




Items Unit Model
Number Of Phase Phase 3
Rated Voltage VAC 230
No-load Speed RPM 3500REF
No-load Current AMPs 0.2REF
Rated Speed RPM 1400
Rated Power W 215
Rated Torque N.m 1.45
Rated Current AMPs 1
Insulating Strength VAC 1500
IP Class   IP55
Insulation Class   B
Body Length mm 155
Weight kg 2.3

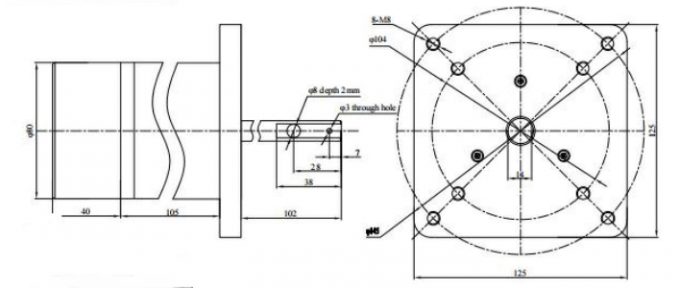

Outline drawing:

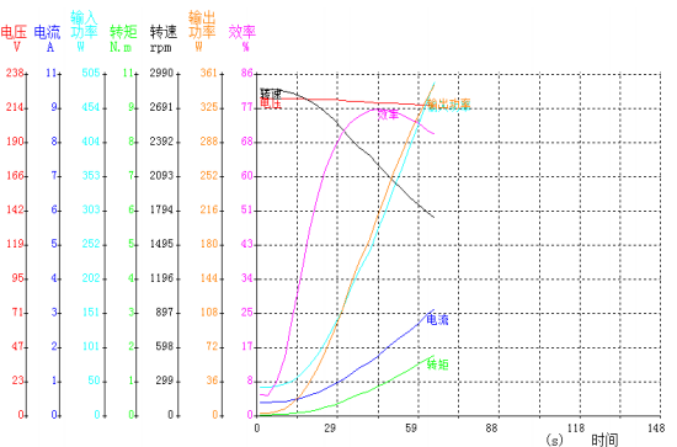

12VDC 48VDC / 230VAC Economical BLDC Motor up to 4000 rpm 0



12VDC 48VDC / 230VAC Economical BLDC Motor up to 4000 rpm 1


1. What are your prices?

Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.

2.Do you have a minimum order quantity?

Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.

3.Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

4.What is the average lead time?

For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

5.What kinds of payment methods do you accept?

You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
