| Brand Name: | Retek |
| Model Number: | W5795A |
| MOQ: | 10pcs |
| Delivery Time: | 3~4 weeks |
| Payment Terms: | Western Union, T/T, L/C |

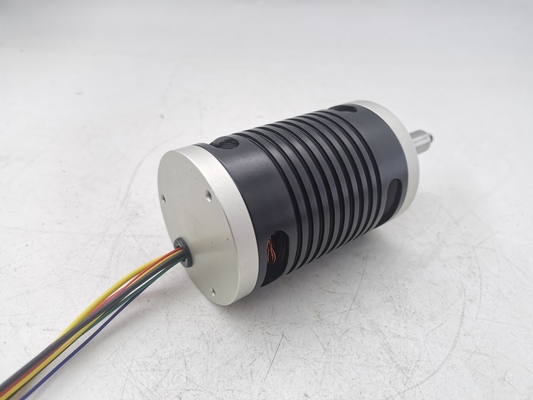

Intelligent Robust BLDC Motor
This W57 series brushless DC motor(Dia. 57mm) applied rigid working circumstances in automotive control and commercial use application.
This size motor is very popular and friendly for users for its relative economic and compact comparing to big sized brushless motors and brushed motors.
Product introduction
This product is a compact high efficient brushless DC motor, magnet ingredient consist of NdFeB(Neodymium Ferrum Boron) and high standard magnets imported from Japan which greatly enhance the efficiency comparing to others available motors in the market.Top quality bearing with strict end play greatly improve the precision performance.
Comparing to brushed dc motors, it has great advantages as below:
High performance and efficiency - BLDCs are broadly more efficient than their brushed counterparts. They use electronic capabilities, allowing for fast and precise control of the speed and position of a motor.
Durability - There are fewer moving parts that control brushless motors than PMDC, making them more resistant to wear and impact. They're not prone to burnout due to sparking that brushed motors often encounter, making their lifespan significantly better.
Low noise - BLDC motors operate more quietly because they don't have brushes that constantly make contact with other components.
Application:
Medical Centrifuge,Cutting machines, dispenser machines, printer,paper counting machines, ATM machines and etc
Specifications:
| Items | Unit | Model |
| W5795A-24 | ||
| Number Of Phase | Phase | 3 |
| Rated Voltage | VDC | 24 |
| Noload Speed | RPM | 7800REF |
| Noload Current | AMPs | 2REF |
| Rated Speed | RPM | 6000 |
| Rated Power | W | 220 |
| Rated Torque | N.m | 0.35 |
| Rated Current | AMPs | 12.2 |
| Insulating Strength | VAC | 1200 |
| IP Class | IP20 | |
| Insulation Class | F | |
| Body Length | mm | 95 |
| Weight | kg | 1.1 |
Outline drawing:
Curve:
FAQ
1. What are your prices?
Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.
2.Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.
3.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4.What is the average lead time?
For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
|
|
