| Brand Name: | Retek |
| Model Number: | W80155A |
| MOQ: | 10pcs |
| Delivery Time: | 3~4 weeks |
| Payment Terms: | Western Union, T/T, L/C |

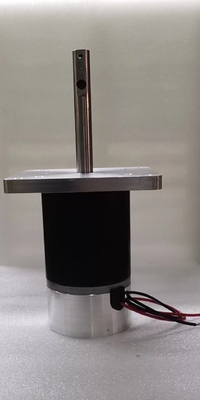

Electric High Torque Automotive BLDC Motor
This W80 series brushless DC motor(Dia. 80mm) applied rigid working circumstances in automotive control and commercial use application.
Highly dynamic, overload capability and high power density, efficiencies of over 90% - these are the characteristics of our BLDC motors. We are the leading solution provider of BLDC motors with integrated controls. Whether as sinusoidal commutated servo version or with Industrial Ethernet interfaces - our motors provide flexibility to be combined with gearboxes, brakes or encoders - all your needs from one source.
Application:
Lawn mower, Water pump, Robotics, Power tools, Automation equipment, Medical equipment, Stage lighting
Specifications:
| Phase | 3 PHS |
| Voltage | 310 VDC |
| Noload Speed | 3500 RPM |
| Noload Current | 0.2 A |
| Rated Speed | 1400 RRM |
| Rated Power | 215W |
| Rated Torque | 1.45N.m |
| Rated Current | 1A |
| Insulationg strength | 1500 VAC |
| IP Class | IP55 |
| Insulation Class | B |
Outline drawing:
FAQ
1. What are your prices?
Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.
2.Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.
3.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4.What is the average lead time?
For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
|
|
