| Brand Name: | Retek |
| Model Number: | W4241 |
| MOQ: | 1000pcs |
| Delivery Time: | 3~4 weeks |
| Payment Terms: | Western Union, T/T |
Tight Structure Compact Automotive BLDC Motor-W3086
This W30 series brushless DC motor(Dia. 30mm) applied rigid working circumstances in automotive control and commercial use application.
It is durable for harsh vibration working condition with S1 working duty, stainless steel shaft, and anodizing surface treatment with 20000 hours long life requirement requirements.
Product Features:
Longer life than commutated motors from other manufacturers
Low detent torques
High efficiency
High dynamic acceleration
Good regulation characteristics
Maintenance-free
Robust design
Low moment of inertia
Extremely high short time overload capacity of the motor
Surface protection
Minimum interference radiation, optional interference suppression
High quality due to fully automated production lines
Specification:
| Voltage Range: | 12VDC,24VDC |
| Output Power | 15~50 watts |
| Duty | S1, S2 |
| Speed Range |
up to 9,000 rpm |
| Operational Temperature: | -20°C to +40°C |
| Bearing Type |
SKF, NSK bearings |
| Insulation Grade | Class B,Class F |
| Optional shaft material |
#45 Steel, Stainless Steel, Cr40 |
| Optional housing surface treatment |
Powder Coated, Electroplating |
| Housing Type |
Air Ventilated |
|
EMC/EMI Performance |
pass all EMC and EMI testing
|
Application:
suction pump,rudder control,helicopter, speedboat and etc.

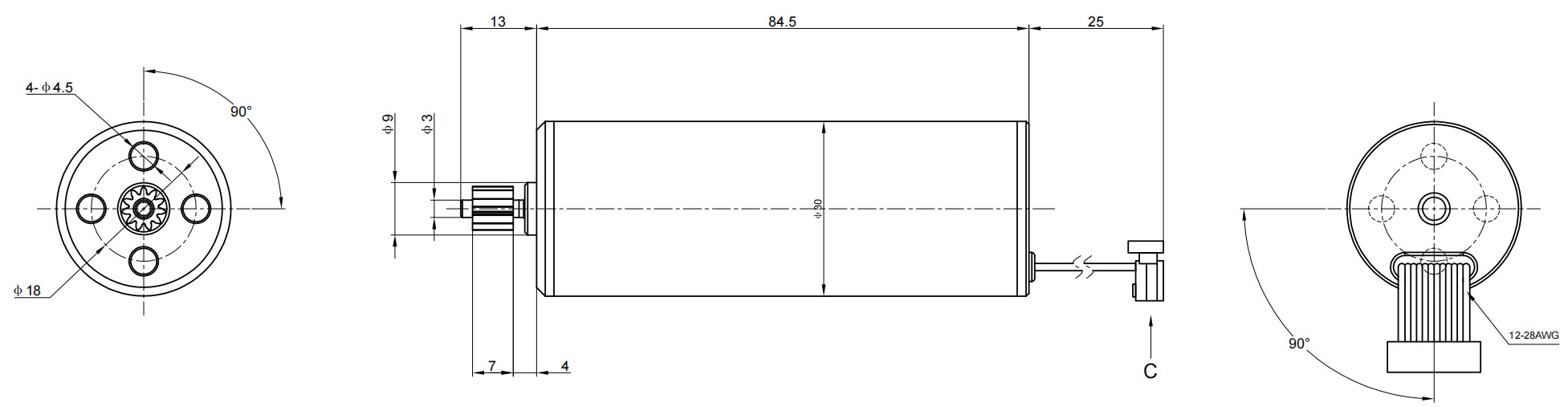

Dimension:
Typical Curve@12VDC :
|
|
