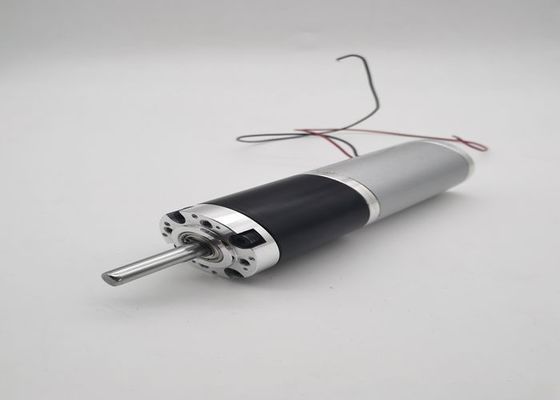

6V 12V 24V Electric Gear Motor High Torque 12 30 60 Rpm For Groby Coffee
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bearing | Ball Bearing | Standard | UL Standard |
|---|---|---|---|
| Insulation | Class F | Rated Voltage | 24VDC |
| No-Load Current | 0.38A | Rated Current | 1.5A |
| No-load Speed | 12RPM±10% | Rated Torque | 10Nm |
| Rated Speed | 9.5RPM±10% | Price | Competitive |
| High Light | standing fan motor,pedestal fan motor |
||
Product Description
6V 12V 24V Electric Gear Motor High Torque 12 30 60 Rpm For Groby Coffee
Dual Voltage AC/DC Motor
BIG Advantages:
Low Noise: Negligible noise comparing to Brushed DC Motors
Durable Life: Long lifes over 20000hrs.
Energy Saving: comparing to PSC motors and induction motors over 30% energy saving
Dual Voltage Input: Connect with 230VAC Power Source or 12VDC Power Source directly
Specification:
| Voltage | 24VDC |
| Bearing | Ball Bearing |
| Standard | UL Standard |
| Insulation | Class F |
| No-Load Current: | 0.38A |
| Rated Current | 1.5A |
| No-load Speed: | 12RPM±10% |
| Rated Torque: | 10Nm |
| Rated Speed: | 9.5RPM±10% |
Performance @230VAC/50Hz and @12VDC Input Power Source:
| Model | Speed Switch |
Performance | ||||
| Voltage(V) | Current(A) | Power(W) | Speed(RPM) | |||
| ACDC Dual Voltage Version |
1st. Speed | 12VDC | 0.96A | 11.5W | 895RPM | |
| 2nd. Speed | 12VDC | 1.83A | 22W | 1148RPM | ||
| 3rd Speed | 12VDC | 3.135A | 38W | 1400RPM | ||
| 1st. Speed | 230VAC | 0.122A | 12.9W | 900RPM | ||
| 2nd. Speed | 230VAC | 0.22A | 24.6W | 1142RPM | ||
| 3rd Speed | 230VAC | 0.33A | 40.4W | 1395RPM | ||
Dimension:
FAQ
1. What are your prices?
Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.
2.Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.
3.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4.What is the average lead time?
For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
