| Brand Name: | Retek |
| Model Number: | D3175PLG |
| MOQ: | 1000pcs |
| Price: | Negotiable |
| Delivery Time: | 14days |
| Payment Terms: | T/T, Western Union |

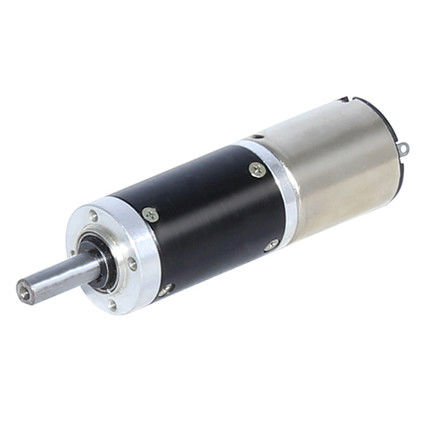

D3175PLG: DC Gearmotors for Automatic Doors,Automobiles,Actuators and Automated Devices.
Typical Application:
Gearmotor, linear actuator,power tool,automated devices
Features:
Low Noise, Long lifespan, Cost less and Save more for your benefits.
Drawing:
Motor Technical Data:
| TYPE | Rated voltage VDC |
No-load speed r/min |
No-load current mA |
Rated speed r/min |
Rated torque m.Nm |
Output power W |
Rated current mA |
Stall torque m.Nm |
Stall current A |
| D3175-2460 | 24 | 6000 | 150 | 4800 | 50 | 24.6 | 1500 | ||
| D3175-2480 | 24 | 8000 | 200 | 6700 | 50 | 34.3 | 2000 | 296 | 10 |
Gear motor Technical Data:
| Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 |
| Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |
| (L) Length(mm) | 31 | 31 | 40.1 | 40.1 | 40.1 | 49 | 49 | 49 | 49 | 57.9 |
| No-load speed (r/min) | 1617 | 1158 | 429 | 316 | 222 | 118 | 85 | 60 | 43 | 32 |
| Rated speed (r/min) | 1294 | 927 | 343 | 253 | 178 | 94 | 68 | 52 | 39 | 28 |
| Rated torque (mN.m) | 0.17 | 0.23 | 0.57 | 0.77 | 1.1 | 1.8 | 2.5 | 2.5 | 2.5 | 3 |
| mN.m Max. permissible load in a short time |
1 | 1 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 |
Shipping:
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Our advantage:
1. Our products have a competitive advantage.
2. We have a team of professional engineers to solve various technical problems and provide you with more professional advice.
3. Good working environment and corporate cohesion.
Our service:
1. Your inquiry about our products or prices will be answered within 24 hours.
2. Well-trained, experienced staff answer all your questions in fluent English.
3. Check the goods before shipment.
4. We respect your feedback after receiving the goods.
Q1: What is our factory product range?
A: Stepper Motor, Brushless Motor, Servo Motor and AC Motor.etc
Q2: Can I get some samples?
A:We are honored to offer you samples for quality check.
Q3: Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
Q4: What's the delivery time?
A:It usually takes about 14 working days,but the exact delivery time might be different for different order or at different time.
Q5: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
Q6: What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
Our company is a manufacturing company specializing in the production of motors. If you have any needs, please contact us, we will protect your sales area, design concept and all private information.
|
|
