| Brand Name: | Retek |
| Model Number: | GM64 Series |
| MOQ: | 1000pcs |
| Price: | Negotiable |
| Delivery Time: | 14days |

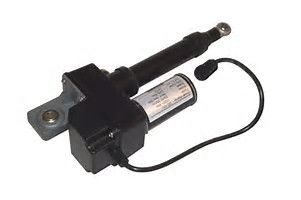

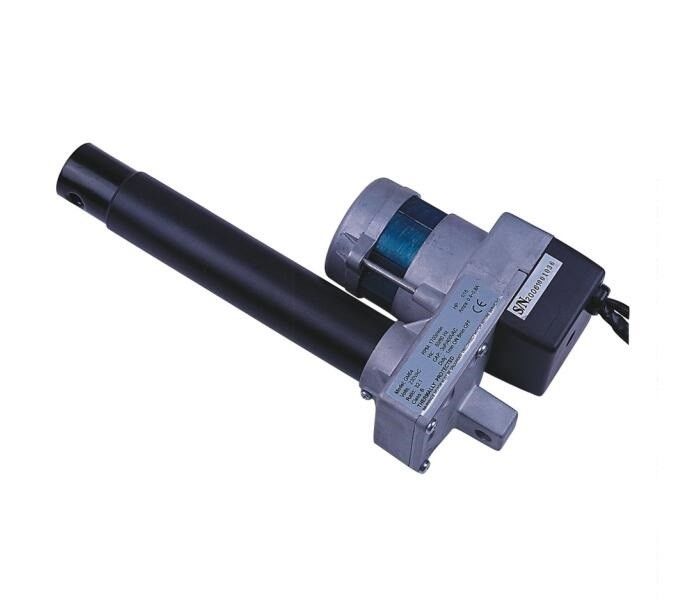

150W Power High Speed Linear Actuator With Sensor Installed GM64 Series
GM64 Series Actuators for Dental Chair, Patient Beds, Automatic Doors and other Automated Devices
Typical Application:
Dental Chair, Patient Beds, Automatic Doors Treadmills, lifting chairs, lifting beds and others.
Features:
Specification:
| Input Power: | (a) 110~120VAC (b) 220~230VAC |
| Duty cycle | 10% (1 ON 9 OFF) |
| Reduction Ratio | 32:1 |
| Powers | 150W |
Parameters
| Model |
Voltage (VAC) |
Max. Static Load(kg) | Max. dynamic load(kg) | Speed(mm/sec) | Current(A) | ||
| No load | Max. load | No load | Max. Load | ||||
| M306 | 110 | 400 | 180 | 3.50 | 2.90 | 0.70 | 0.80 |
| 220 | 400 | 180 | 3.40 | 2.80 | 0.35 | 0.40 | |
| M308 | 110 | 500 | 250 | 2.60 | 2.20 | 0.70 | 0.80 |
| 220 | 500 | 250 | 2.50 | 2.10 | 0.35 | 0.40 | |
Drawing:
|
|
