| Brand Name: | Retek |
| Model Number: | Steel Gears |
| MOQ: | 1000pcs |
| Price: | Negotiable |
| Delivery Time: | 14days |

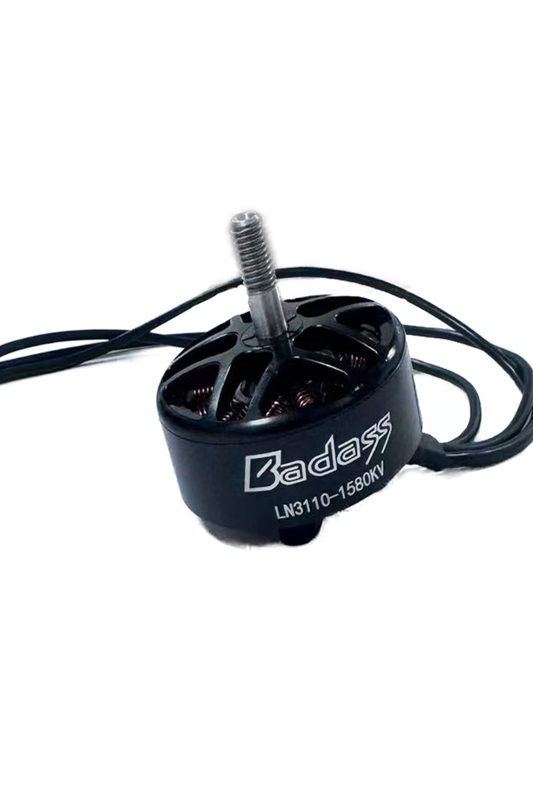

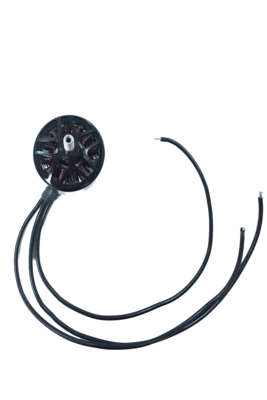

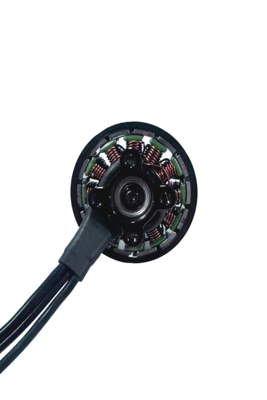

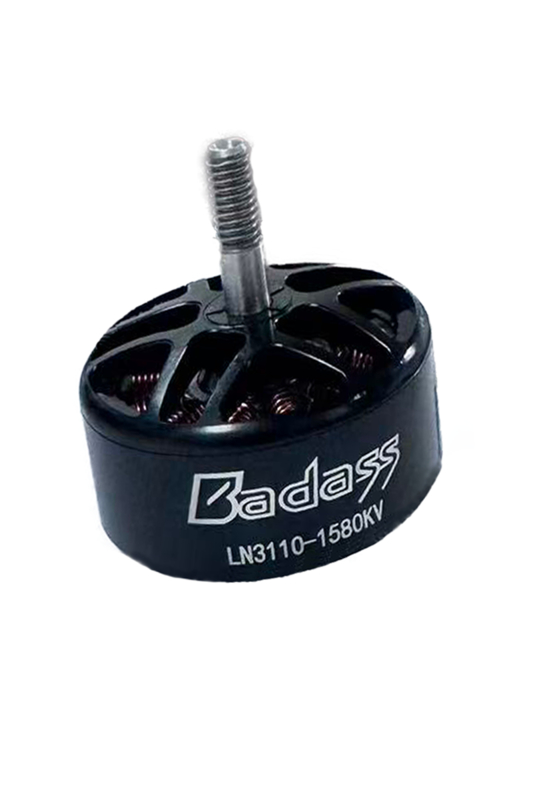

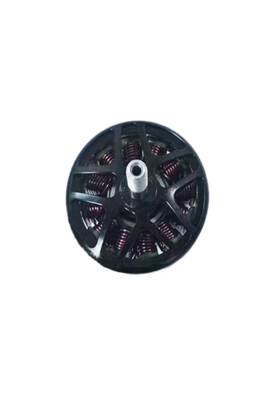

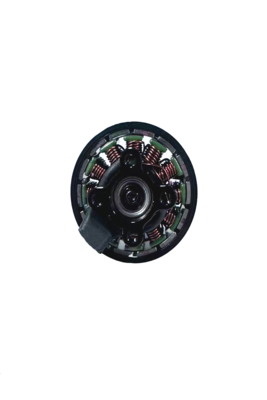

This model aircraft motor with a rated voltage of 24VDC and CCW rotation direction (viewed from the shaft extension end). Featuring a KV value of 1,580, it belongs to the medium-high speed motor category. Its electrical performance is outstanding: it can withstand an ADC 600V/3mA/1Sec withstand voltage test and has a CLASS F insulation rating. Under no-load conditions, it reaches a speed of 37,900±10% RPM at a maximum current of 3.6A; under load, it maintains a speed of 35,000±10% RPM, a current of 27.2A±10%, and an output torque of 0.317N·m, capable of meeting the power demands of heavy-load scenarios. In terms of mechanical performance, the motor has a vibration level ≤7m/s, noise ≤75dB/1m (when ambient noise ≤45dB), and backlash controlled within 0.2-0.01mm. Unspecified dimensional tolerances comply with GB/T1804-2000 m-class standards, ensuring high machining precision and guaranteeing stable operation and precise control.
General Specification:
|
|
| Brand Name: | Retek |
| Model Number: | Steel Gears |
| MOQ: | 1000pcs |
| Price: | Negotiable |
| Packaging Details: | 25PCS/Carton |
This model aircraft motor with a rated voltage of 24VDC and CCW rotation direction (viewed from the shaft extension end). Featuring a KV value of 1,580, it belongs to the medium-high speed motor category. Its electrical performance is outstanding: it can withstand an ADC 600V/3mA/1Sec withstand voltage test and has a CLASS F insulation rating. Under no-load conditions, it reaches a speed of 37,900±10% RPM at a maximum current of 3.6A; under load, it maintains a speed of 35,000±10% RPM, a current of 27.2A±10%, and an output torque of 0.317N·m, capable of meeting the power demands of heavy-load scenarios. In terms of mechanical performance, the motor has a vibration level ≤7m/s, noise ≤75dB/1m (when ambient noise ≤45dB), and backlash controlled within 0.2-0.01mm. Unspecified dimensional tolerances comply with GB/T1804-2000 m-class standards, ensuring high machining precision and guaranteeing stable operation and precise control.
General Specification:
