Induction AC motor

Place of Origin China
Brand Name Retek
Certification CE, ETL, CAS, UL
Model Number LN9430M12-001
Minimum Order Quantity 1000pcs
Price Negotiable
Packaging Details 15PCS/Carton
Delivery Time 14days
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Optional Voltage 115VDC Powers 37.5 Watts
Duty S1 Speed Range 1600RPM
Operational Temperature -20°C To +40°C Original China
Leave a Message
Product Description

Induction motor-LN9430M12-001


Induction motors are engineering marvels that utilize the principles of electromagnetic induction to provide powerful and efficient performance in a variety of applications. This versatile and reliable motor is the cornerstone of modern industrial and commercial machinery and offers many advantages that make it an indispensable component in countless systems and equipment.


induction motors are a testament to engineering ingenuity, providing unparalleled reliability, efficiency and adaptability in a variety of applications. Whether powering industrial machinery, HVAC systems or water treatment facilities, this vital component continues to drive progress and innovation in countless industries.




Production introduction


Induction motors have the following features.The rotating magnetic field induces current in the rotor, thereby producing motion. Designed to withstand harsh working conditions, induction motors feature rugged construction and high-quality materials, ensuring longevity and reliability in industrial environments. Induction motors are capable of controlling speed through frequency modulation, providing precise, flexible operation, making them ideal for applications requiring varying speed and torque.What’s more, Induction motors are known for their high energy efficiency, which helps reduce operating costs and environmental impact. This makes them an attractive option for businesses looking to optimize energy use and achieve sustainability goals.From conveying systems and pumps to fans and compressors, induction motors are widely used in industrial and commercial equipment.


General Specification:

  • Rated Voltage: AC115V
  • Rated Frequency: 60Hz
  • Capacitance: 7μF 370V
  • Rotation Direction: CCW/CW(View from Shaft Extenion Side)
  • Hi-POT Test: AC1500V/5mA/1Sec
  • Rated Speed: 1600RPM
  • Rated Output Power: 40W(1/16HP)
  • Duty: S1
  • Vibration: ≤12m/s
  • Insulation Grade: CLASS F
  • IP Class: IP22
  • Frame Size: 38,Open
  • Ball Bearing: 6000 2RS

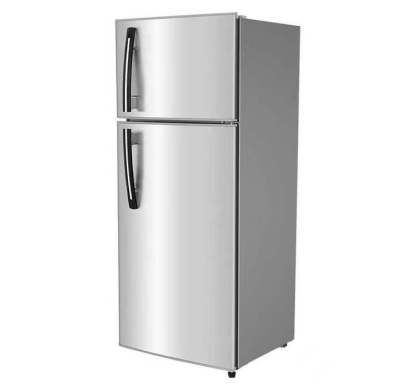

Refrigerator,laundry machine,water pump and etc.


Induction AC motor 0


Induction AC motor 1



Induction AC motor 2







































Induction AC motor 3



Items Unit Model
Rated voltage V 115(AC)
Rated speed RPM 1600
Rated frequency Hz 60
Rotation direction / CCW/CW
Rated current A 2.5
Rated power W 40
Vibration m/s 12
Alternating voltage VAC 1500
Insulation Class / F
IP Class / IP22



1. What are your prices?

Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.

2.Do you have a minimum order quantity?

Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.

3.Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

4.What is the average lead time?

For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

5.What kinds of payment methods do you accept?

You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
