Seed Drive brushed DC motor

Place of Origin China
Brand Name Retek
Certification CE, ETL, CAS, UL
Model Number D63105
Minimum Order Quantity 1000pcs
Price Negotiable
Packaging Details 15PCS/Carton
Delivery Time 14days
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Optional Voltage 12VDC Powers 120 Watts
Duty S1, S2 Speed Range 3120 Rpm
Operational Temperature -20°C To +40°C Original China
Leave a Message
Product Description

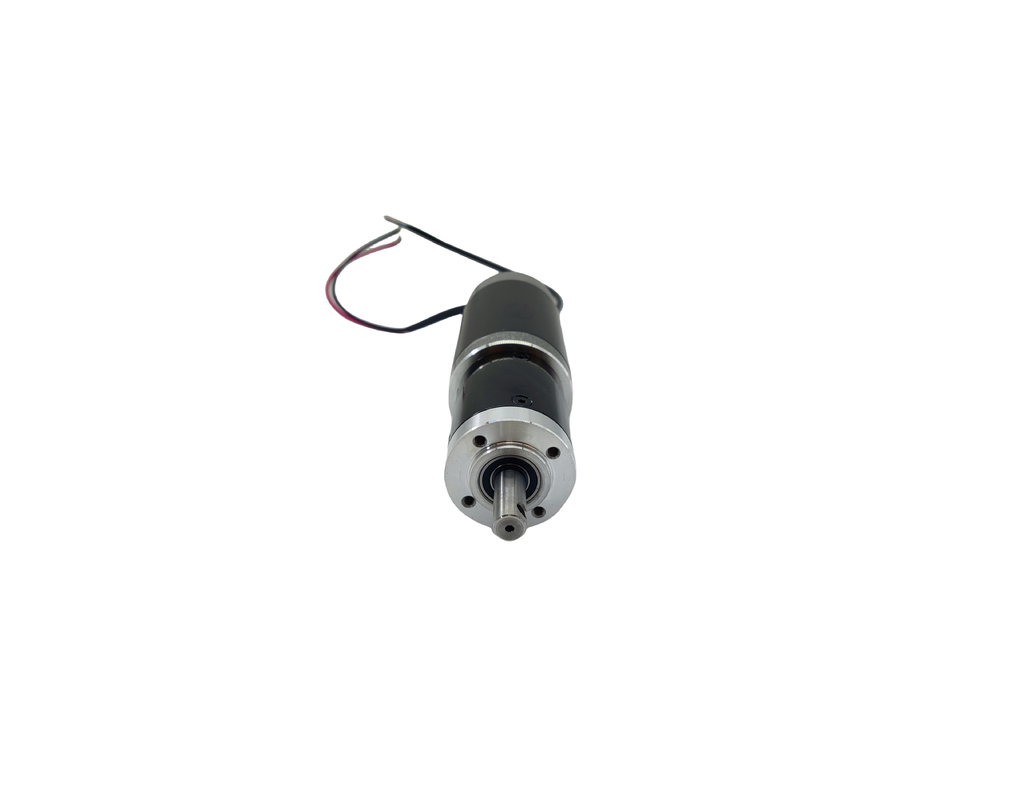

Seed Drive brushed DC motor- D63105


The Seeder Motor is a revolutionary brushed DC motor designed to meet the diverse needs of the agricultural industry. As the most basic driving device of a planter, the motor plays a vital role in ensuring smooth and efficient seeding operations. By driving other important components of the planter, such as the wheels and seed dispenser, the motor simplifies the entire planting process, saving time, effort and resources, and promises to take planting operations to the next level.


It is durable for harsh vibration working condition with S1 working duty, stainless steel shaft, and anodizing surface treatment with 1000 hours long life requirement requirements.





Product introduction


One of the main highlights of seeder motors is the wide range of speed regulation, which allows for a large speed adjustment range. This versatility ensures that farmers and gardeners can customize the seeding process according to the specific requirements of the crop. The ability to regulate the motor speed greatly improves the precision and accuracy of seeding, ultimately increasing crop yields. Another notable feature is the ability to achieve precise speed control through electronic speed regulation. This cutting-edge technology allows the farmer to have complete control over the speed of the motor, ensuring accuracy in the planting process. The precision provided by electronic speed control minimizes the chances of uneven seed distribution, resulting in even sowing and increasing the chances of successful germination of each seed. In addition, it has a high starting torque. This feature is especially beneficial when soil conditions are poor or when sowing heavy or dense seeds. The high starting torque allows the motor to generate a tremendous amount of force to overcome any resistance that may be encountered during sowing. This ensures that the seed is firmly planted in the ground, creating the conditions for a healthy and thriving crop.


Designed with precision and durability in mind, this motor is built to withstand the rigors of the agro-industry. Its robust construction guarantees long-lasting performance and ensures continued benefits for years to come.


General Specification:

  • Voltage Range: 12VDC
  • No Load Current: ≤1A
  • No-load speed:3900rpm±10%
  • Rated Speed: 3120±10%
  • Rated Current: ≤9A
  • Rated Torque: 0.22Nm
  • Duty: S1, S2
  • Operational Temperature: -20°C to +40°C
  • Insulation Grade: Class B, Class F, Class H
  • Bearing Type: durable brand ball bearings
  • Optional shaft material: #45 Steel, Stainless Steel, Cr40
  • Certification: CE, ETL, CAS, UL




Seed drive, Fertilizer spreaders, rototillers and ect.

Seed Drive brushed DC motor 0


Seed Drive brushed DC motor 1


Seed Drive brushed DC motor 2










Seed Drive brushed DC motor 3



Items Unit Model
Rated voltage V 12(DC)
No-load speed RPM 3900rpm±10%
No-load current A ≤1A
Rated speed RPM 3120±10%
Rated current A ≤9
Rated Torque Nm 0.22
Insulating Strength VAC 1500
Insulation Class   F
IP Class   IP40



1. What are your prices?

Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.

2.Do you have a minimum order quantity?

Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.

3.Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

4.What is the average lead time?

For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

5.What kinds of payment methods do you accept?

You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
