Window Opener Brushless DC Motor

Place of Origin China
Brand Name Retek
Certification CE, ETL, CAS, UL
Model Number W8090A
Minimum Order Quantity 1000pcs
Price Negotiable
Packaging Details 15PCS/Carton
Delivery Time 14days
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Optional Voltage 230VAC Powers <205 Watts
Duty S1, S2 Speed Range Up To 50 Rpm
Operational Temperature -20°C To +40°C Original China
Leave a Message
Product Description

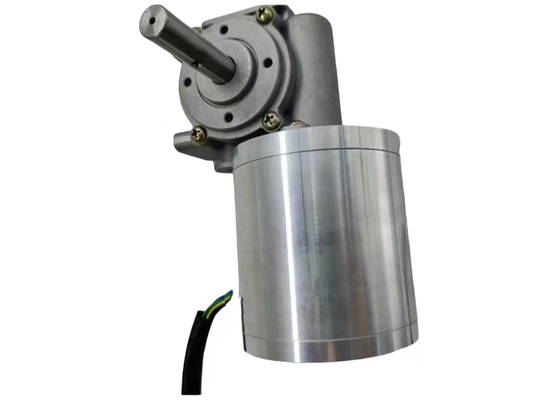

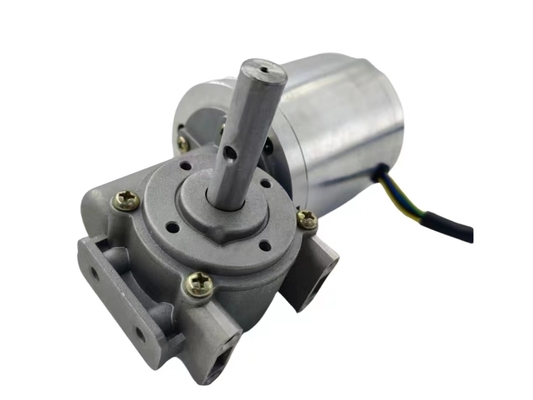

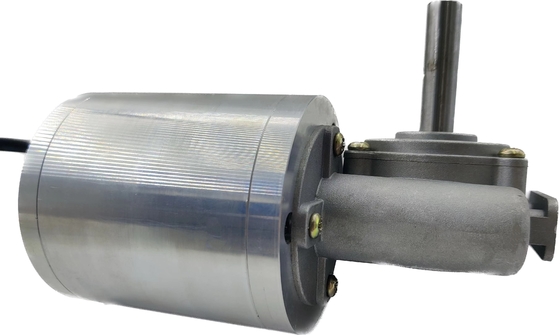

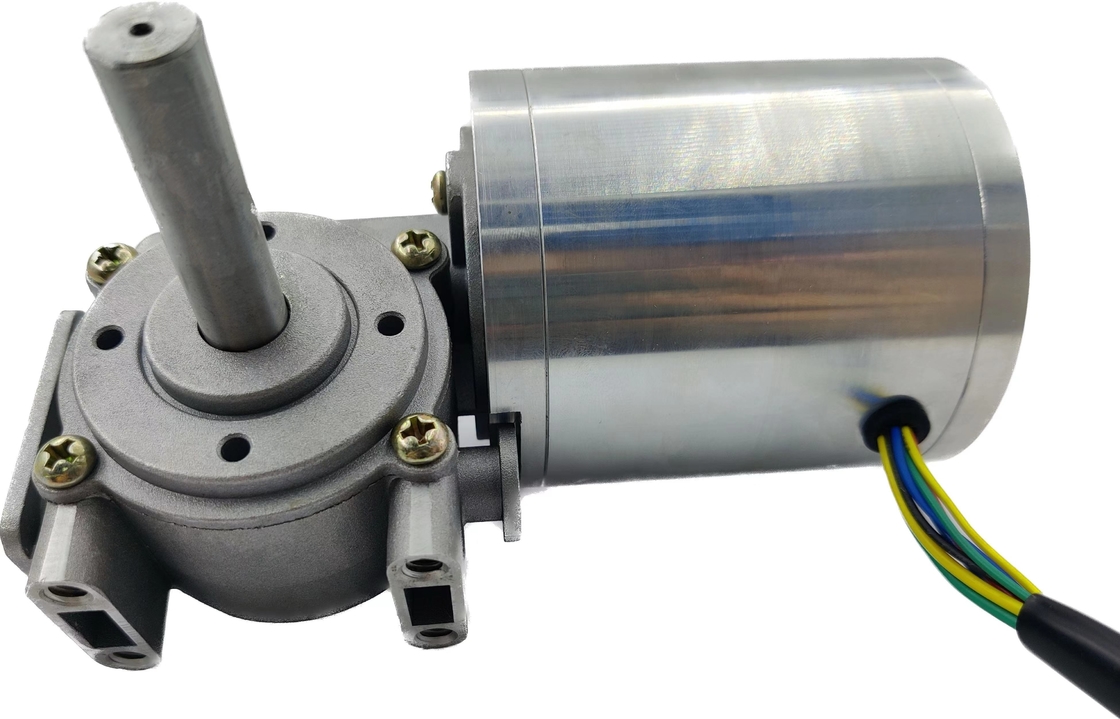

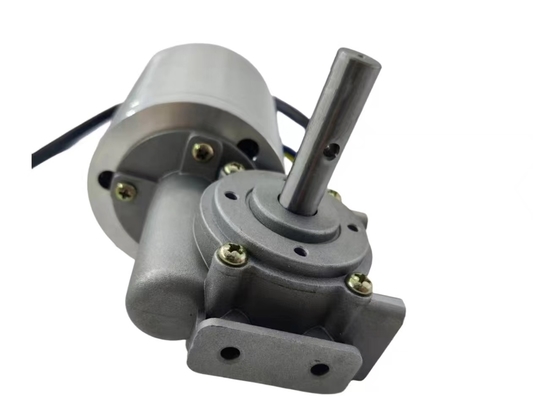

Window Opener Brushless DC Motor-W8090A


Brushless motors are known for their high efficiency, quiet operation, and long service life. These motors are built with a turbo worm gear box that includes bronze gears, making them wear-resistant and durable. This combination of a brushless motor with a turbo worm gear box ensures a smooth and efficient operation, without the need for regular maintenance.


It is durable for harsh vibration working condition with S1 working duty, stainless steel shaft, and anodizing surface treatment with 1000 hours long life requirement requirements.





Product introduction


The gear box design with a turbo worm gear and bronze gear provides several benefits. It offers wear resistance, ensuring a longer lifespan for the gear motor. Additionally, the use of bronze helps to reduce noise during operation. In addition, the gear motor has a versatile motor voltage input range of 80-240VAC. This wide range allows the motor to be compatible with various power sources and also provides flexibility in installation. The integration of hall sensors within the brushless motor allows for better speed control. Hall sensors provide feedback about the motor's position and speed, which can be utilized by the motor controller to ensure accurate speed regulation and precise control over the window opening mechanism.


Overall, a window opening gear motor with a brushless motor, turbo worm gear box, and hall sensors provides efficient, quiet, and precise operation for automating window opening and closing.


General Specification:

  • Voltage Range: 230VAC
  • Output Power: <205 watts
  • Duty: S1, S2
  • Speed Range: up to 50 rpm
  • Rated Torque: 20Nm
  • Operational Temperature: -20°C to +40°C
  • Insulation Grade: Class B, Class F, Class H
  • Bearing Type: durable brand ball bearings
  • Optional shaft material: #45 Steel, Stainless Steel, Cr40
  • Certification: CE, ETL, CAS, UL

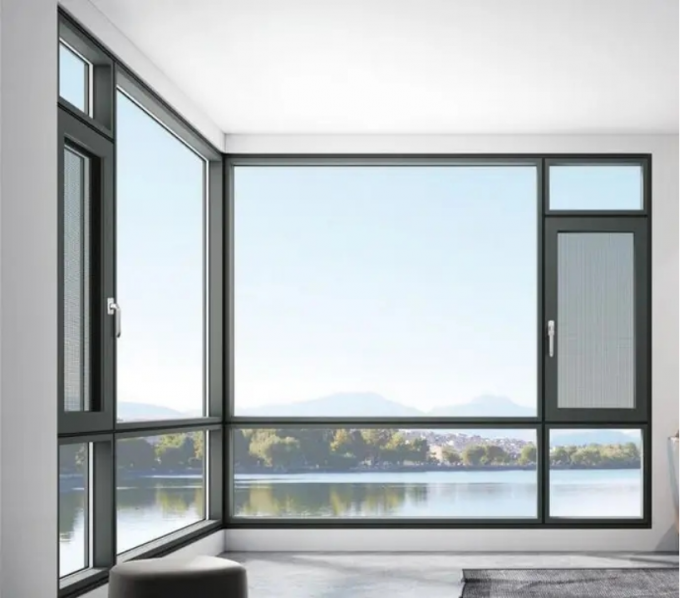

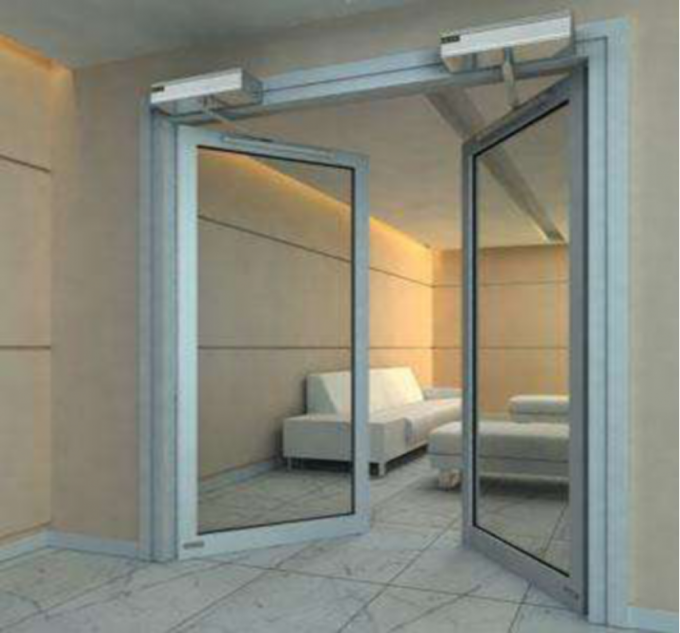

Automatic window induction, Automatic door induction and etc


Window Opener Brushless DC Motor 0


Window Opener Brushless DC Motor 1






Window Opener Brushless DC Motor 2



Items Unit Model
Rated voltage V 230(AC)
No-load speed RPM /
No-load current A /
Load speed RPM 50
Load current A 1.5
Output power W 205
Rated Torque Nm 20
Insulating Strength VAC 1500
Insulation Class   B
IP Class   IP40
