Industrial BLDC Fan Motor W89127 24V / 36V / 48VDC

Place of Origin China
Brand Name Retek
Certification UL, CSA, ETL,CE
Model Number W89127
Minimum Order Quantity 1000pcs
Packaging Details by air,by sea
Delivery Time 3~4 weeks
Payment Terms Western Union, T/T
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optional Voltage 24V/36V/48VDC Output Power 200~1500watts
Duty S1 Speed Range Up To 4,000 Rpm
Bearing Type Sleeve Bearings, Ball Bearings Optional. Pricing Competitive
Custom Mad Accept Custom-Made Original China
High Light

24v BLDC Fan Motor

,

Industrial BLDC Fan Motor

,

Industrial 24v Bldc Motor

Leave a Message
Product Description

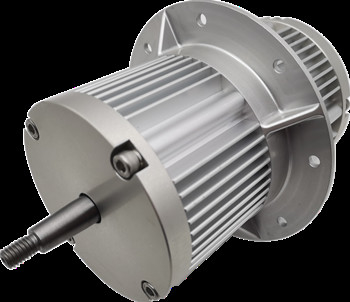

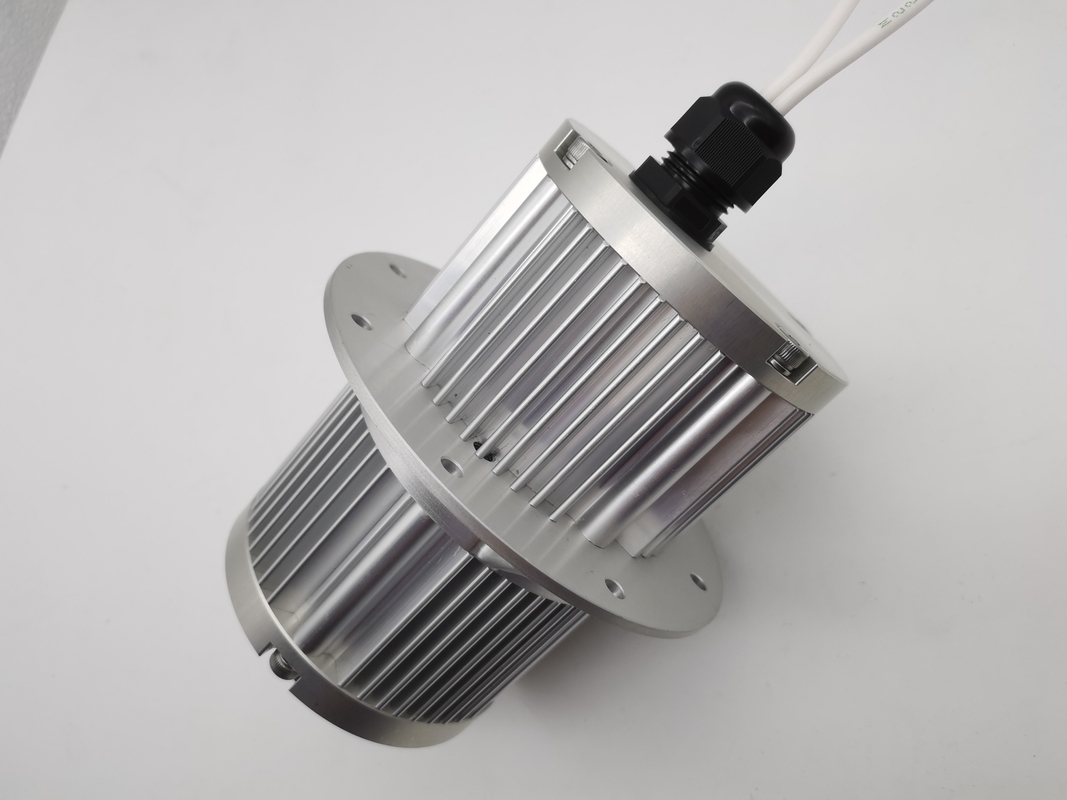

Industrial Durable BLDC Fan Motor-W89127



This W89 series brushless DC motor(Dia. 89mm), is designed for industrial application such as helicopters, speedboad,commercial air curtains,and other heavy duty blowers which requires IP68 standards.



The significant feature of this motor is it can be used in very harsh environment in high temperature, high humid and vibration circumstances.





Product Key Features:



*Industrial fan motor 1hp power

*Controller embedded

*Water proof feature IP68

*Fins for heat radiation

*Outdoor harsh environment application

*Oxidization Surface treatment



Here is the simple comparisons between AC motor fans and EC motor fans:



Industrial BLDC Fan Motor W89127 24V / 36V / 48VDC 0Industrial BLDC Fan Motor W89127 24V / 36V / 48VDC 1



Based on above comparisons, it is easier to make decision to upgrade your products into EC motors, which would significantly increase your products competence, spending a little more in initial investment, but a definitely BIG SAVING in future using.



General Specification:

  • Voltage Range: 24V/36V/48VDC
  • Output Power: 200~1500watts
  • Duty: S1,
  • Speed Range: up to 4,000 rpm
  • Operational Temperature: -20°C to +60°C
  • Insulation Grade: Class F, Class H
  • Bearing Type: sleeve bearings, ball bearings optional.
  • Optional shaft material: #45 Steel, Stainless Steel,
  • Housing Type: Air Ventilated, Plastic Housing
  • Rotor feature: Inner rotor brushless motor
  • Certification: UL, CSA, ETL,CE

Specification:

Voltage Range:

24V/36V/48VDC

Output Power 200~1500 watts
Duty S1
Speed Range

up to 4,000 rpm

Operational Temperature: -20°C to +40°C
Bearing Type

sleeve bearings, ball bearings optional

Insulation Grade Class F,Class H

Housing Type

Air Ventilated, Plastic Housing

Optional shaft material

#45 Steel, Stainless Steel

Rotor feature Inner rotor brushless motor

Certification

IUL, CSA, ETL,CE



Application:

Industrial Blowers,aircraft cooling system,heavy duty air ventilators, HVAC, air coolers and harsh environment etc.

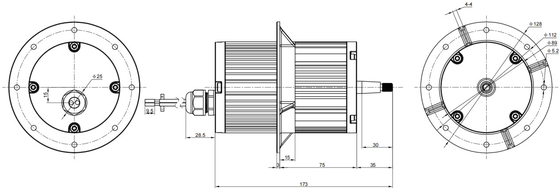

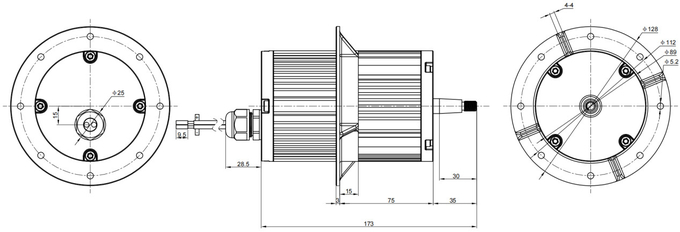

Dimension:

Industrial BLDC Fan Motor W89127 24V / 36V / 48VDC 2

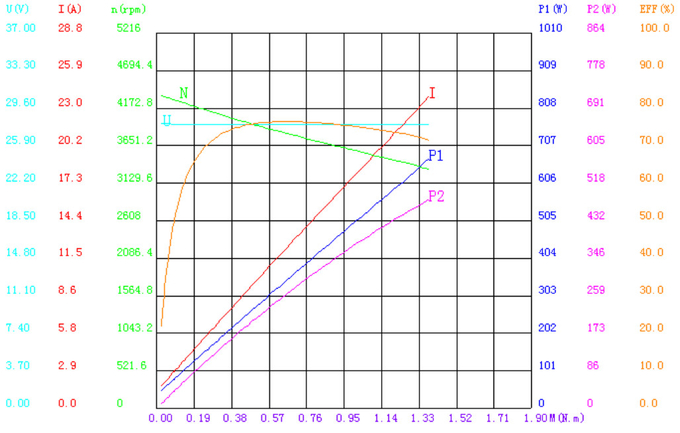

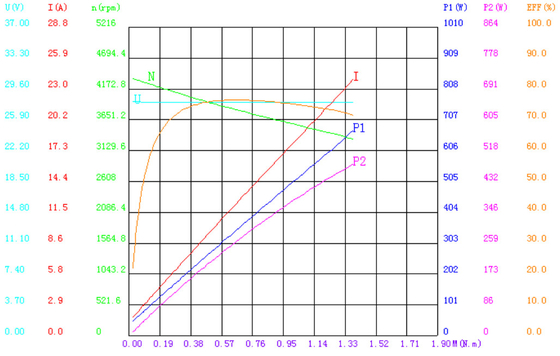

Typical Performance:

Industrial BLDC Fan Motor W89127 24V / 36V / 48VDC 3
