Energy Star Air Vent BLDC Motor W8083 Accept Custom Made

Place of Origin China
Brand Name Retek
Certification UL, CSA, ETL,CE
Model Number W8083
Minimum Order Quantity 1000pcs
Packaging Details by air,by sea
Delivery Time 3~4 weeks
Payment Terms Western Union, T/T
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optional Voltage 115VAC/230VAC Output Power 15~100 Watts
Duty S1 Speed Range Up To 3,000 Rpm
Bearing Type Sleeve Bearings, Ball Bearings Optional. Pricing Competitive
Custom Mad Accept Custom-Made Original China
High Light

Custom Made Bldc Motor

,

3000 Rpm Bldc Motor

,

UL Bldc Fan Motor

Leave a Message
Product Description

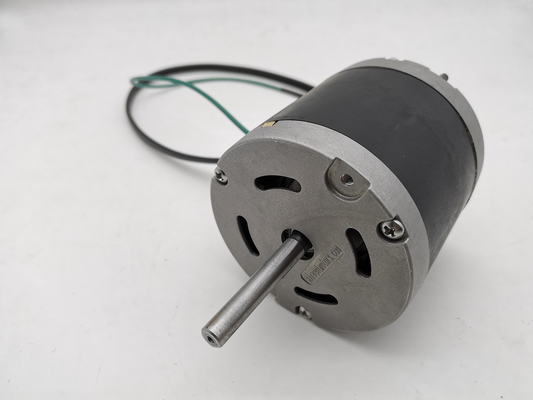

Energy Star Air Vent BLDC Motor-W8083



This W80 series brushless DC motor(Dia. 80mm), another name we call it 3.3 inch EC motor, integrated with controller embedded. It is connected directly with AC power source such as 115VAC or 230VAC.



It is particularly developed for future energy saving blowers and fans used in North American and European markets.



Product introduction

3.3 inch EC motors are designed with two versions:

(1) 16 speeds version implemented by dip-switch OEM factories can adjust them in house.

(2) Constant airflow version which OEM factories can adjust the motor via AirVent software in Android or Windows.

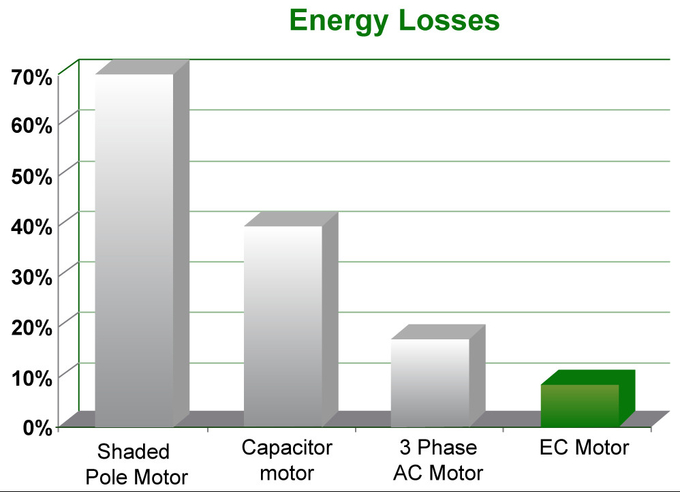

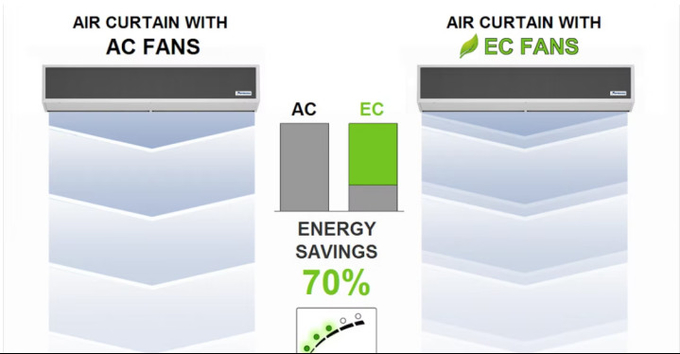

Here is the simple comparisons between AC motor fans and EC motor fans:

Energy Star Air Vent BLDC Motor W8083 Accept Custom Made 0Energy Star Air Vent BLDC Motor W8083 Accept Custom Made 1



Based on above comparisons, it is easier to make decision to upgrade your products into EC motors, which would significantly increase your products competence, spending a little more in initial investment, but a definitely BIG SAVING in future using.



Specification:

Voltage Range:

1115VAC/230VAC

Output Power 15~100 watts
Duty S1
Speed Range

up to 3,000 rpm

Operational Temperature: -20°C to +40°C
Bearing Type

sleeve bearings, ball bearings optional

Insulation Grade Class B,Class F

Housing Type

Air Ventilated, Plastic Housing

Optional housing surface treatment

#45 Steel, Stainless Steel

Certification

UL, CSA, ETL,CE



Application:

Blowers, air ventilators, HVAC, air coolers, standing fans, bracket fans,air purifiers, range hood, ceiling fan, bathroom fans and etc.

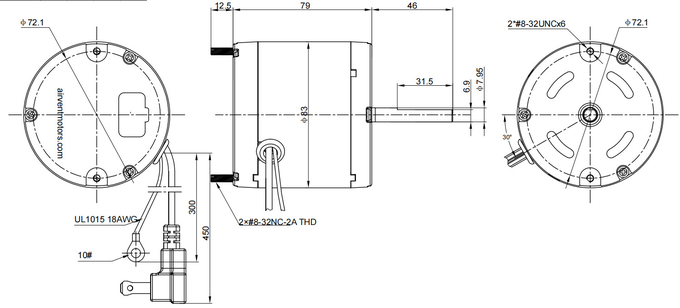

Dimension:

Energy Star Air Vent BLDC Motor W8083 Accept Custom Made 2

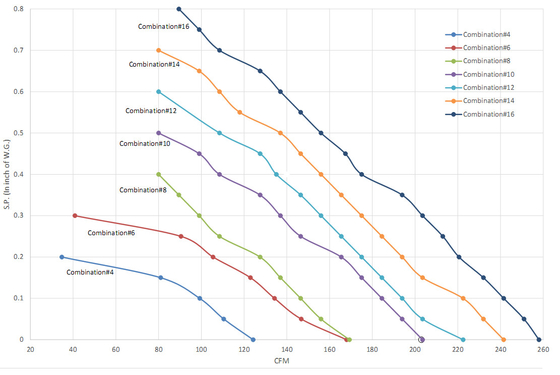

Typical Performance:

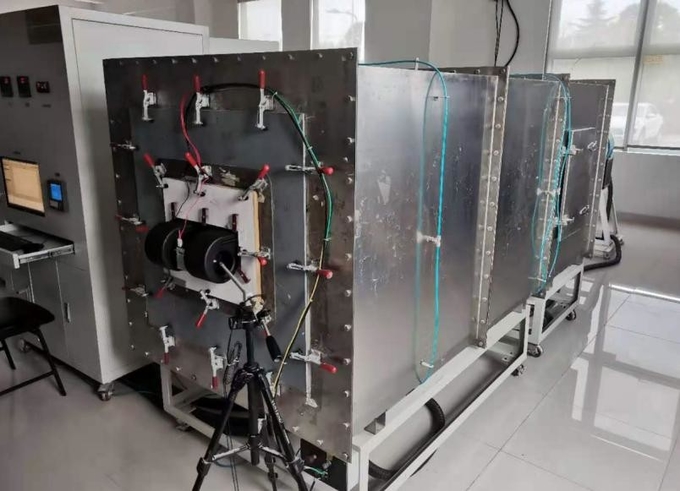

The testing implemented by ASTM standards:



Energy Star Air Vent BLDC Motor W8083 Accept Custom Made 3
