| Brand Name: | Retek |
| Model Number: | D5268A |
| MOQ: | 1000pcs |
| Delivery Time: | 3~4 weeks |
| Payment Terms: | Western Union, T/T |

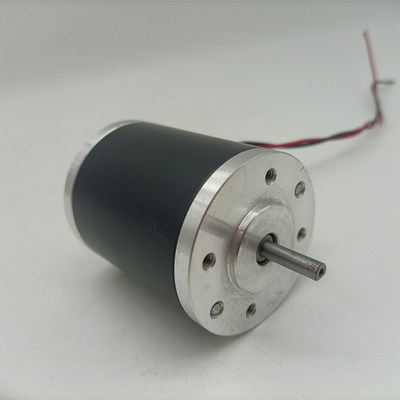

D52 series brushed DC motor,Reliable Automotive DC Motor
This product is a compact high efficient brushed DC motor, we offer two options of magnets: Ferrite and NdFeB. If choose magnet made by NdFeB(Neodymium Ferrum Boron) , it would provide much more robust power than others available motors in the market.
The rotor has skewed slots feature which greatly improve the electromagnetic noise.
By using bonded epoxy, the motor can be used in very harsh circumstances with severe vibration like suction pump and etc. in medical field.
To pass EMI and EMC testing, adding capacitors is also a good choice if needed.
It is also durable for harsh vibration working condition with S1 working duty, stainless steel shaft, and powder coating surface treatment with 1000 hours long life requirements and IP68 grade if necessary by water-proof shaft seals.
Specification:
| Voltage Range: | 12VDC,24VDC,130VDC,162VDC |
| Output Power | 15~100 watts |
| Duty | S1, S2 |
| Speed Range | up to 10,000 rpm |
| Operational Temperature: | -20°C to +40°C |
| Bearing Type | durable brand ball bearings |
| Insulation Grade | Class B, Class F, Class H |
| Optional shaft material | #45 Steel, Stainless Steel, Cr40 |
| Optional housing surface treatment | Powder Coated, Electroplating,Anodizing |
| Housing Type | Air Ventilated, Water Proof IP68. |
| Slot Feature | Skew Slots,Straight Slots |
| EMC/EMI Performance | pass all EMC and EMI testing. |
Application:
suction pump, window openers,diaphragm pump, vacuum cleaner,clay trap, electric vehicle, golf cart, hoist, winches, dental bed.
Dimension:
Typical Curve @24VDC:
This D52 series brushed DC motor(Dia. 52mm) applied rigid working circumstances in smart devices and financial machines, with equivalent quality comparing to other big names but cost-effective for dollars saving.
It is reliable for precise working condition with S1 working duty, stainless steel shaft, and black powder coating surface with 1000 hours long life requirement requirements.
|
|
