| Brand Name: | Retek |
| Model Number: | W3085A-12 |
| MOQ: | 1000pcs |
| Price: | Negotiable |
| Delivery Time: | 45 Days |
| Payment Terms: | Western Union, T/T, MoneyGram |
DC Gear Motor Diameter 30mm With Gear 12V 24V W3085A-12
This W30 series brushless DC motor(Dia. 30mm) applied rigid working circumstances in automotive control and commercial use application.
It is durable for harsh vibration working condition with S1 working duty, stainless steel shaft, and anodizing surface treatment with 20000 hours long life requirement requirements.
Application:
suction pump,rudder control,helicopter, speedboat and etc.
Specification:
| Voltage Range: | 12VDC,24VDC |
| Output Power | 15~50 watts |
| Duty | S1, S2 |
| Speed Range | up to 9,000 rpm |
| Operational Temperature: | -20°C to +40°C |
| Bearing Type | SKF, NSK bearings |
| Insulation Grade | Class B,Class F |
| Optional shaft material | #45 Steel, Stainless Steel, Cr40 |
| Optional housing surface treatment | Powder Coated, Electroplating |
| Housing Type | Air Ventilated |
| EMC/EMI Performance |
pass all EMC and EMI testing
|

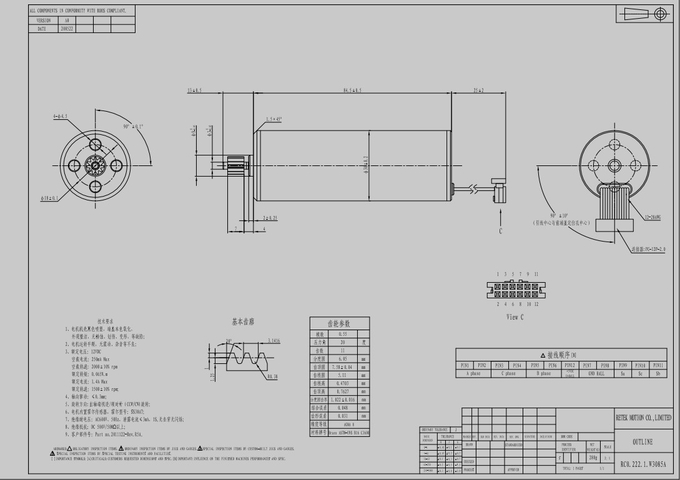

Drawing:
Typical Curve:
|
|
