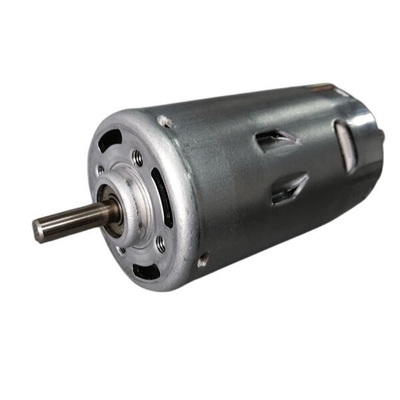

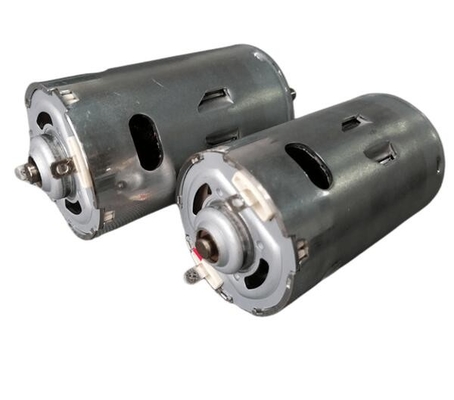

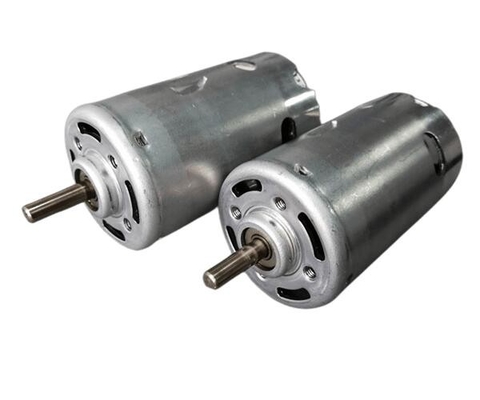

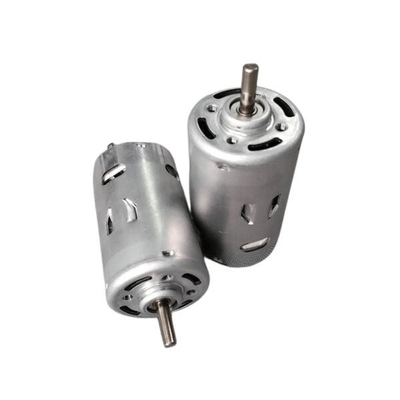

Brushed DC Blower Motor EMC Capacitor Mounted small high speed dc motors

Place of Origin China
Brand Name Retek
Certification CCC,UL,CE
Model Number D5285A-12
Minimum Order Quantity 1000pcs
Price $6.5~$11.5
Packaging Details 20PCS/Carton
Delivery Time 3weeks
Payment Terms T/T, Western Union, MoneyGram,Paypal
Supply Ability 50000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 12VDC No-Load Speed 7096RPM
No-Load Current 3.29AMPS Max. Torque 0.3Nm
Current @ Max. Torque 20.05AMPS Speed @ Max. Torque 4960RPM
Efficiecy @ Max. Torque 64.88% Output @ Max. Torque 155.6W
Max. Efficiency 78.03% Speed @ Max. Efficiency 6656RPM
Torque @ Max. Effficiency 0.083Nm Current @ Max. Efficiency 6.195AMPS
Output @ Max. Efficiency 58W Motor Diameter 51.8mm; 52mm
Motor Length 85mm Frame Material Punched Steel Frame
Shaft Material #45; 40Cr, S303;SS304 Bearing Ball Bearing; Oil Sleeve Bearing
Insulation Class F;Class H Ambient Working Conditon -40C~180C
Inner Fan Optional To Mount Inner Fan
High Light

Brushed DC Blower Motor

,

7096 RPM DC Blower Motor

,

7096 RPM Automotive DC Motors

Leave a Message
Product Description

Features:Low Noise, Durable, Ball Bearings Optional, High Efficiency

Typical Application: Blowers, Hand Held Power Tools, Water Pump, Feeders, Automobile.
Packaging: Blister, Foam, Carton optional



Typical Drawing:

Brushed DC Blower Motor EMC Capacitor Mounted small high speed dc motors 0



Typical Performance:

S/N Model Voltage(V) Current(A) Input Power(W) Torque(Nm) Speed(RPM) Output Power(W) (Efficiency)
1 D5285A-12#1 12.11 3.294 39.7 0.038 7096 28.28 71.22
2 D5285A-12#1 12.08 3.401 41.0 0.04 7059 29.86 72.89
3 D5285A-12#1 12.02 3.899 46.9 0.049 6954 35.65 76.04
4 D5285A-12#1 12.00 4.41 53.0 0.057 6876 40.90 77.21
5 D5285A-12#1 11.99 4.821 57.9 0.063 6821 44.93 77.65
6 D5285A-12#1 11.99 5.261 63.1 0.069 6766 49.16 77.89
7 D5285A-12#1 11.99 5.662 67.9 0.075 6718 52.95 77.99
8 D5285A-12#1 11.99 6.195 74.3 0.083 6656 57.95 78.03
9 D5285A-12#1 12.00 6.886 82.5 0.093 6577 64.37 78.00
10 D5285A-12#1 12.01 7.464 89.4 0.102 6511 69.71 77.94
11 D5285A-12#1 12.02 8.011 96.0 0.111 6448 74.74 77.86
12 D5285A-12#1 12.02 8.523 102.1 0.119 6388 79.42 77.76
13 D5285A-12#1 12.03 9.132 109.5 0.128 6315 84.96 77.63
14 D5285A-12#1 12.03 9.742 116.8 0.138 6240 90.45 77.45
15 D5285A-12#1 12.03 10.23 122.6 0.146 6179 94.74 77.26
16 D5285A-12#1 12.03 10.66 127.8 0.154 6124 98.48 77.06
17 D5285A-12#1 12.02 11.47 137.7 0.167 6017 105.4 76.55
18 D5285A-12#1 12.02 12.27 147.4 0.181 5911 111.8 75.86
19 D5285A-12#1 12.01 13.17 158.2 0.195 5793 118.4 74.86
20 D5285A-12#1 12.01 13.98 167.9 0.208 5690 123.9 73.79
21 D5285A-12#1 12.01 14.78 177.7 0.22 5590 128.9 72.58
22 D5285A-12#1 12.01 15.59 187.4 0.232 5493 133.6 71.29
23 D5285A-12#1 12.02 16.49 198.2 0.245 5389 138.4 69.83
24 D5285A-12#1 12.02 17.2 206.6 0.255 5309 141.9 68.71
25 D5285A-12#1 12.03 18.04 216.5 0.267 5214 146.0 67.43
26 D5285A-12#1 12.02 19.05 228.4 0.283 5094 150.8 66.01
27 D5285A-12#1 11.99 20.05 239.8 0.3 4960 155.6 64.88



Typical Curve:

Brushed DC Blower Motor EMC Capacitor Mounted small high speed dc motors 1



For custom made, please feel free to contact us today.!
