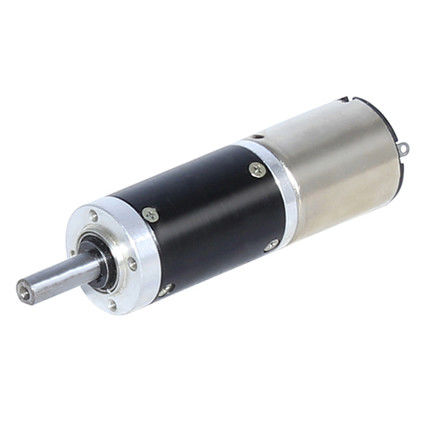

Smooth Operation DC Gear Motor With Encoder 21 Watt Rated Convenient Drive D30N55PLG

Place of Origin China
Brand Name Retek
Certification CCC,UL,Reach, RoHS, CE
Model Number D30N55PLG
Minimum Order Quantity 1000pcs
Price Negotiable
Packaging Details 150PCS/Carton
Delivery Time 14days
Payment Terms T/T, Western Union
Supply Ability 20000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optional Voltage DC 3V/6V/12V/24V Powers 21W
Stall Torque (mN.m) 130 Original China
High Light

geared electric motor

,

high torque gear motor

Leave a Message
Product Description

D30N55PLG: DC Gearmotors for Automatic Doors,Automobiles,Actuators and Automated Devices.





Typical Application:

Gearmotor, linear actuator,power tool,automated devices



Features:

Low Noise, Long lifespan, Cost less and Save more for your benefits.





Drawing:

Smooth Operation DC Gear Motor With Encoder 21 Watt Rated Convenient Drive D30N55PLG 0



Motor Technical Data:

TYPE Rated
voltage
VDC
No-load
speed
r/min
No-load
current
mA
Rated
speed
r/min
Rated
torque
m.Nm
Output
power
W
Rated
current
mA
Stall
torque
m.Nm
Stall
current
A
D30N55-2470 24 7000 200 5300 40 21 1400 130 3.3



Gear motor Technical Data:

Reduction ratio 3.7 5.2 14 19 27 51 71 100 139 189 264
Number of gear trains 1 1 2 2 2 3 3 3 3 4 4
(L) Length(mm) 31 31 40.1 40.1 40.1 49 49 49 49 57.9 57.9
No-load speed (r/min) 1887 1351 500 368 259 137 99 70 50 37 27
Rated speed (r/min) 1429 1023 379 276 196 104 75 55 43 31 24
Rated torque (mN.m) 0.13 0.19 0.45 0.62 0.87 1.5 2 2.5 2.5 3 3
mN.m
Max. permissible load in a short time
1 1 3.5 3.5 3.5 7.5 7.5 7.5 7.5 9 9



For custom made, please feel free to contact us today.
