Brushed Type Automotive DC Motors 3000 Gcm2 Rotor Inertia For Power Tool D82138A

Place of Origin China
Brand Name Retek
Certification CCC,UL
Model Number D82138A
Minimum Order Quantity 1000pcs
Price USD7.5~USD25.00
Packaging Details 6PCS/Carton
Delivery Time 14days
Supply Ability 10000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Optional Voltage DC 12V/24V/36/V/48V/120V/230V Powers 50W~2000W
Pole 2, 4 Duty S1, S2
Application Chargable Tools, Automated Device Custom Made Accept Custom-Made
Pricing Competitive Original China
High Light

industrial dc motor

,

small brushed dc motor

Leave a Message
Product Description

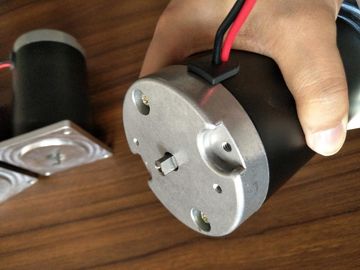

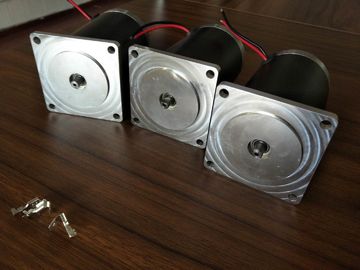

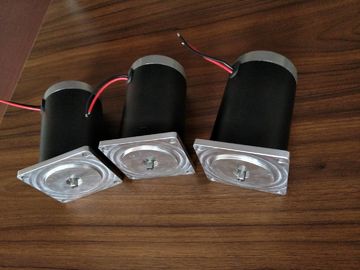

Brushed Type Automotive DC Motors 3000 Gcm2 Rotor Inertia For Power Tool D82138A





This product is a compact high efficient brushed DC motor, magnet ingredient consist of NdFeB(Neodymium Ferrum Boron) which greatly enhance the efficiency comparing to others available motors in the market.



The motor also adopts the skewed slots design which greatly improve the electromagnetic noise.

By using bonded epoxy, the motor can be used in very harsh circumstances with severe vibration such as ambulance ventilator pump, suction pump and etc. In medical field.



We also provide the service to add the shield fabric wrapped the motors and capacitors to ensure it fulfill high standard working condition meeting EMI and EMC requirements.



It is also durable for harsh vibration working condition with S1 working duty, stainless steel shaft, and anodizing surface treatment with 1000 hours long life requirement requirements and IP68 grade if necessary.



Typical Application:

Gearmotor, linear actuator,power tool, spreader,auger,automations and so on.

The motors are higher efficiency than others and good drop-in replacement for other expensive big branded factories motors.



Features:

Low Noise, Long lifespan, Cost less and Save more for your benefits.



Performance:

Voltage Range: 12VDC,24VDC,130VDC,162VDC
Output Power 50~300 watts
Duty S1, S2
Speed Range up to 9,000 rpm
Operational Temperature: -20°C to +40°C
Bearing Type durable brand ball bearings
Insulation Grade Class F, Class H
Optional shaft material #45 Steel, Stainless Steel, Cr40
Optional housing surface treatment Powder Coated, Electroplating,Anodizing
Housing Type Air Ventilated, Water Proof IP68.
Slot Feature Skew Slots,Straight Slots
EMC/EMI Performance pass all EMC and EMI testing.



Typical Specification:

Model D82
Rated voltage                          V dc                 12                        24                           48
Rated speed rpm 2580 2580 2580
Rated torque N.m 1.0 1.0 1.0
Current A 32 16 9.5
Starting torque N.m 5.9 5.9 5.9
Starting current A 175 82 46
No load speed rpm 3100 3100 3100
No load current A 3 2.5 2.0
Demag current A 250 160 90
Rotor inertia Gcm2 3000 3000 3000
Weight of motor kg 2.5 2.5 2.5
Motor length mm 140 140 140



Drawing:

Brushed Type Automotive DC Motors 3000 Gcm2 Rotor Inertia For Power Tool D82138A 0

FAQ

1. What are your prices?

Our prices are subject to specification depending on technical requirements. We will make offer we clearly understand your working condition and technical requirements.

2.Do you have a minimum order quantity?

Yes, we require all international orders to have an ongoing minimum order quantity. Normally 1000PCS, however we also accept the custom made order with smaller quantity with higher expense.

3.Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

4.What is the average lead time?

For samples, the lead time is about 14 days. For mass production, the lead time is 30~45 days after receiving the deposit payment. The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

5.What kinds of payment methods do you accept?

You can make the payment to our bank account, Western Union or PayPal: 30% deposit in advance, 70% balance before shipment.
