| Brand Name: | Retek |
| Model Number: | D8293A |
| MOQ: | 1000pcs |
| Price: | Negotiable |
| Delivery Time: | 14days |

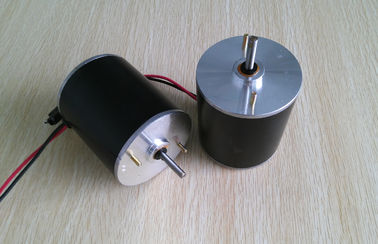

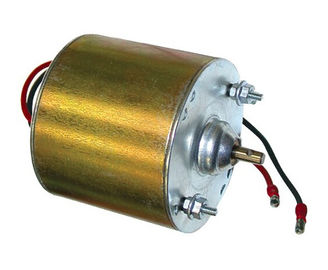

Waterproof High Torque Brushed Motor , Low RPM Dc Motor Battery Charge D8290A
Features:
Water-Proof Optional
Low Noise, Long lifespan, Cost less and Save more for your benefits.
Typical Application:
Animal Feeder Machine and Hunter Machine Feeder, Pet Feeder Machine
Traditional Feeder Motor Type:
Oil Bearing, Punched Caps, Lower Cost.
Upgrade Feeder Motors
Ball Bearing, Die-Cast Caps, 30% Higher Efficiency
Typical Specification:
| Model | D82 | |||
| Rated voltage | V dc | 12 | 24 | 48 |
| Rated speed | rpm | 2580 | 2580 | 2580 |
| Rated torque | N.m | 1.0 | 1.0 | 1.0 |
| Current | A | 32 | 16 | 9.5 |
| Starting torque | N.m | 5.9 | 5.9 | 5.9 |
| Starting current | A | 175 | 82 | 46 |
| No load speed | rpm | 3100 | 3100 | 3100 |
| No load current | A | 3 | 2.5 | 2.0 |
| Demag current | A | 250 | 160 | 90 |
| Rotor inertia | Gcm2 | 3000 | 3000 | 3000 |
| Weight of motor | kg | 2.5 | 2.5 | 2.5 |
| Motor length | mm | 140 | 140 | 140 |
Drawing:

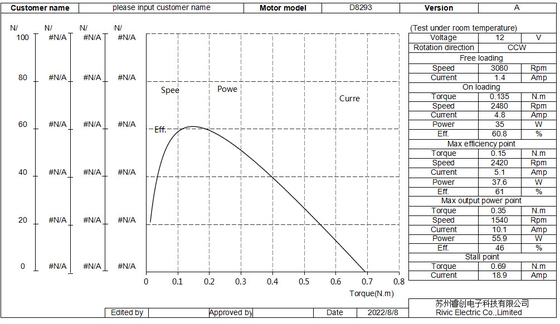

Typical Curve:
|
|
