Cost-Effective Brushless Fan Motors Launched into production

March 3, 2020
Latest company news about Cost-Effective Brushless Fan Motors Launched into production



After a couple of months development, we custom make an economic brushless fan motor combined with controller, which controller is integrated designed to use under 230VAC input and 12VDC input condition.



This cost-effective solution efficiency is over 20% comparing to others in the market.

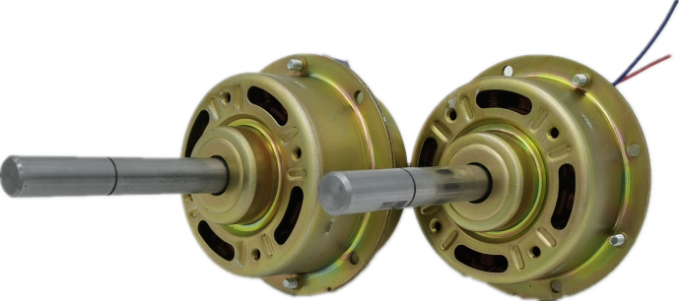

latest company news about Cost-Effective Brushless Fan Motors Launched into production  0





Typical Performances As below



Model Speed
Switch
Performance Motor Remarks Controller Requirements
Voltage(V)

Current

(A)

Power

(W)

Speed

(RPM)


Standing Fan Motor
ACDC Version
12VDC and 230VAC)
Model: W7020-23012-420
1st. Speed 12VDC 2.443A 29.3W 947RPM P/N: W7020-23012-420
W stands for brushless DC
7020 stands for stack spec.
230 stands for 230VAC
12 stands for 12VDC
420 stands for 4blades*20inch OD
1. Dual Voltage input 12VDC/230VAC
2. Over voltage protection:
12VDC: 10.8VDC~30VDC
230VAC: 80VAC~285VAC
3. Three speeds control
4. Include the remote controller.
(infrared ray control)
2nd. Speed 12VDC 4.25A 51.1W 1141RPM
3rd Speed 12VDC 6.98A 84.1W 1340RPM

1st. Speed 230VAC 0.279A 32.8W 1000
2nd. Speed 230VAC 0.448A 55.4W 1150
3rd Speed 230VAC 0.67A 86.5W 1350

Standing Fan Motor
ACDC Version
12VDC and 230VAC)
Model: W7020A-23012-418
1st. Speed 12VDC 0.96A 11.5W 895RPM P/N: W7020A-23012-418
W stands for brushless DC
7020 stands for stack spec.
230 stands for 230VAC
12 stands for 12VDC
418 stands for 4blades*18inch OD
1. Dual Voltage input 12VDC/230VAC
2. Over voltage protection:
12VDC: 10.8VDC~30VDC
230VAC: 80VAC~285VAC
3. Three speeds control
4. Include the remote controller.
(infrared ray control)
2nd. Speed 12VDC 1.83A 22W 1148RPM
3rd Speed 12VDC 3.135A 38W 1400RPM

1st. Speed 230VAC 0.122A 12.9W 950
2nd. Speed 230VAC 0.22A 24.6W 1150
3rd Speed 230VAC 0.33A 40.4W 1375

Wall Bracket Fan Motor
ACDC Version
12VDC and 230VAC)
Model: W7020A-23012-318
1st. Speed 12VDC 0.96A 11.5W 895RPM P/N: W7020A-23012-318
W stands for brushless DC
7020 stands for stack spec.
230 stands for 230VAC
12 stands for 12VDC
318 stands for 3blades*18inch OD
1. Dual Voltage input 12VDC/230VAC
2. Over voltage protection:
12VDC: 10.8VDC~30VDC
230VAC: 80VAC~285VAC
3. Three speeds control
4. With rotation remote control function
5. Include the remote controller.
(infrared ray control)
2nd. Speed 12VDC 1.83A 22W 1148RPM
3rd Speed 12VDC 3.135A 38W 1400RPM

1st. Speed 230VAC 0.122A 12.9W 950
2nd. Speed 230VAC 0.22A 24.6W 1150
3rd Speed 230VAC 0.33A 40.4W 1375

Wall Bracket Fan Motor
230VAC Version
Model: W7020A-230-318
1st. Speed 230VAC 0.13A 12.3W 950 P/N: W7020A-230-318
W stands for brushless DC
7020 stands for stack spec.
230 stands for 230VAC
318 stands for 3blades*18inch OD
1. Dual Voltage input 12VDC/230VAC
2. Over voltage protection:
230VAC: 80VAC~285VAC
3. Three speeds control
4. With rotation remote control function
5. Include the remote controller.
(infrared ray control)
2nd. Speed 230VAC 0.205A 20.9W 1150
3rd Speed 230VAC 0.315A 35W 1375






Our motors can be used in bracket fans, standing fans, coolers and other HVAC system.

The blades normally in 18” and 24” with 3 blades or 5 blades version made by Aluminum.

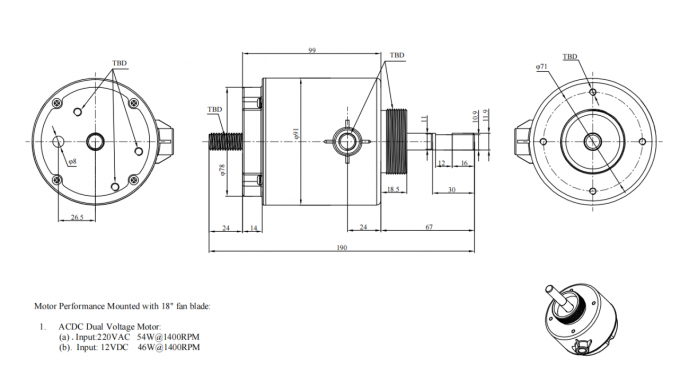

latest company news about Cost-Effective Brushless Fan Motors Launched into production  1





Reach us today for your applications!!
