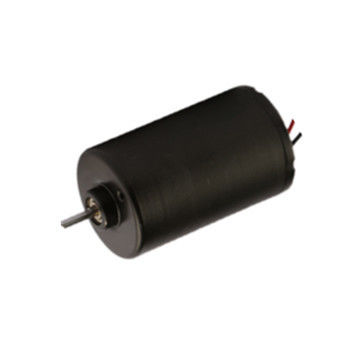

Smooth Operation Brushless DC Electric Motor 36mm*40mm Dimension W3640

Smooth Operation Brushless DC Electric Motor 36mm*40mm Dimension W3640

Smooth Operation Brushless DC Electric Motor 36mm*40mm Dimension W3640

Product Details:

Place of Origin: China
Brand Name: Retek
Certification: CCC,UL
Model Number: W3640

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 25PCS/Carton
Delivery Time: 14days
Payment Terms: T/T, Western Union
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Voltage(V): 19.0 ~ 26.0 Noload Speed(RPM): 3400 ~ 16000
Noload Current(A): 0.04 ~ 0.60 Speed(RPM) @ Max. Effy.: 2900 ~ 14000
Current(A) @ Max. Effy.: 0.18 ~ 2.4 Torque(g.cm)@ Max. Effy.: 115 ~ 270
Output(W)@Max. Effy.: 3.3 ~ 35 Effy.(%): 62.8 ~ 75
Stall Torque(g.cm): 780.0 ~ 1500

36mm*40mm:Brushless DC motor W3640 for industral apparatus personal care and home appliances





Typical Application:



Electric Shaver, Hair Dryer and Medical Apparatus and Medical Stirrer, Vibrator





Drawing:



Smooth Operation Brushless DC Electric Motor 36mm*40mm Dimension W3640







Typical Performance:



  Voltage Noload At Max. Efficiency Stall
Model Operating Range(V) Nominal(V) Speed(RPM) Current(A) Speed(RPM) Current(A) Torque(g.cm) Output(W) EFF(%) Torque(g.cm)
W3640A 9.0~14.0 12.0V constant 7930 0.56 6405 2.35 269.9 17.7 62.8 1404.4
W3640B 19.0~26.0 24.0V constant 3420 0.04 2920 0.18 114.1 3.3 69.6 780
W3640C 19.0~26.0 24.0V constant 16020 0.36 13416 1.85 241.2 33.2 74.6 1484.3





Curve:



Smooth Operation Brushless DC Electric Motor 36mm*40mm Dimension W3640







For more details, please feel free to contact us for full specification.
