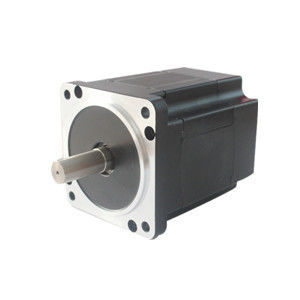

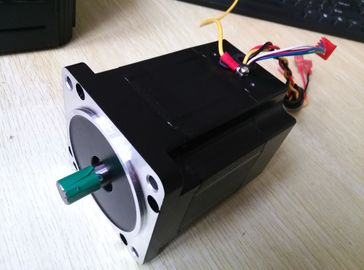

Square Brushless DC Electric Motor Custom Made With Rated Speed 3000 RPM

Square Brushless DC Electric Motor Custom Made With Rated Speed 3000 RPM

    • Square Brushless DC Electric Motor Custom Made With Rated Speed 3000 RPM
    • Square Brushless DC Electric Motor Custom Made With Rated Speed 3000 RPM
    • Square Brushless DC Electric Motor Custom Made With Rated Speed 3000 RPM
  • Square Brushless DC Electric Motor Custom Made With Rated Speed 3000 RPM

    Product Details:

    Place of Origin: China
    Brand Name: Retek
    Certification: CCC,UL, RoHS, CSA, Reach
    Model Number: W86 Sqaure Series

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: 6PCS/Carton
    Delivery Time: 14days
    Payment Terms: T/T, Western Union
    Supply Ability: 5000PCS/Month
    Detailed Product Description
    Wind Type: Star Connection Number Of Poles/Phase: 8/3
    Hall Effect Angle: 120° Shaft Run Out: 0.025mm
    Dielectric Strength: 500 VDC For One Minute Environmental Conditions: -10-40℃
    Magnet Material: Bonded NdFeB Insulation: B

    86*86mm: W86 Square Brushless DC motors for motion control automatic machines custom made available





    Typical Application:



    Mobility,cars, automatic machines, robotics, motion control facilities, liquid dispense and rotary diaphragm pump drives and agricultural and light industrial applications.





    Drawing:



    Square Brushless DC Electric Motor Custom Made With Rated Speed 3000 RPM



    Performances:



    Model W8680 W86105 W86130
    Voltage V   48
    No load speed rpm ±10% 3500 3500 3500
    Rated Power W   314 565 785
    Rated torque Nm   1 1.8 2.5
    Rated Speed rpm ±10% 3000 3000 3000
    Rated Current A ±10% 8.6 14.8 20
    Torque(max) Nm   3 5.4 7.5
    Back-EMF constant V/Krpm ±10% 9.8 9.8 10
    Torque Constant Nm/A ±10% 0.13 0.13 0.14
    Resistance ohm   0.32 0.14 0.1
    Weight Kg   2.2 3.2 4.2
    Length mm   80 105 130





    For custom made, please feel free to contact us today.
