| Brand Name: | Retek |
| Model Number: | Steel Gears |
| MOQ: | 1000pcs |
| Price: | Negotiable |
| Delivery Time: | 14days |

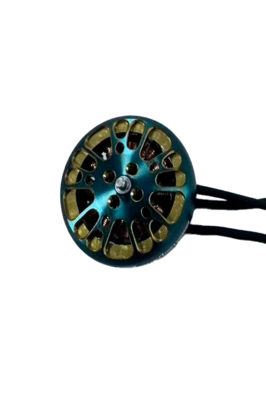

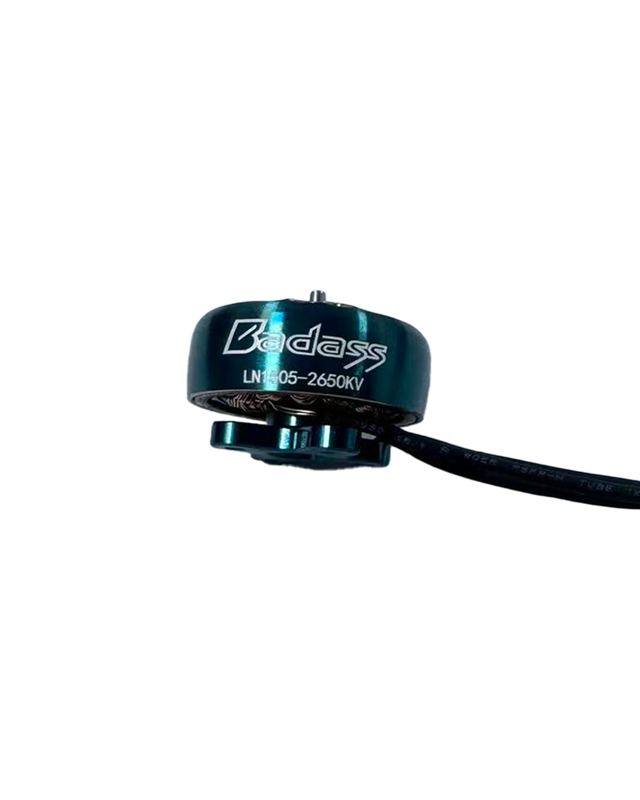

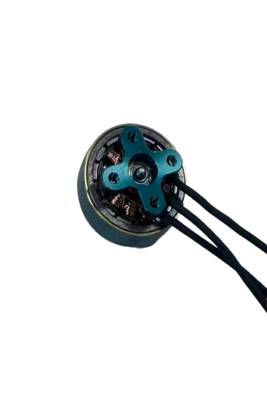

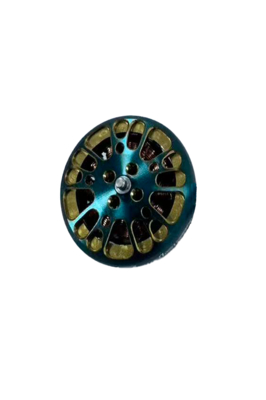

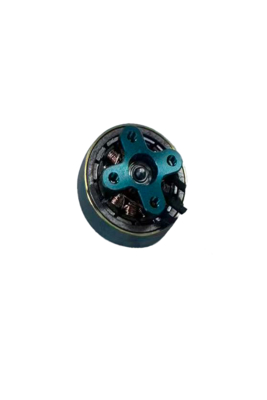

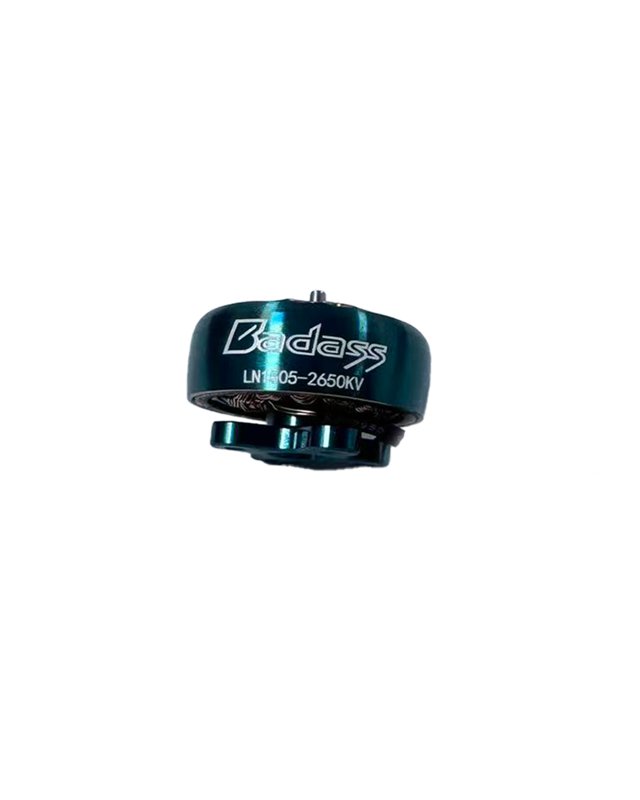

This brushless motor, features a rated voltage of 12VDC and supports CCW/CW bidirectional rotation (viewed from the shaft extension end). With a KV value of 2,650, it belongs to a high-speed motor category. Its electrical performance is outstanding: it can withstand an ADC 600V/3mA/1Sec withstand voltage test, has a CLASS F insulation rating, and delivers an no-load speed of 31,800±10% RPM at a maximum current of 2.0A. Under load, it maintains a speed of 28,000±10% RPM, a current of 3.4A±10%, and an output torque of 0.0103N·m. In terms of mechanical performance, the motor has a vibration level ≤7m/s, noise ≤75dB/1m (when ambient noise ≤45dB), and backlash controlled within 0.2-0.01mm. Unspecified dimensional tolerances comply with GB/T1804-2000 m-class standards, ensuring high machining precision.
General Specification:
|
|
| Brand Name: | Retek |
| Model Number: | Steel Gears |
| MOQ: | 1000pcs |
| Price: | Negotiable |
| Packaging Details: | 25PCS/Carton |
This brushless motor, features a rated voltage of 12VDC and supports CCW/CW bidirectional rotation (viewed from the shaft extension end). With a KV value of 2,650, it belongs to a high-speed motor category. Its electrical performance is outstanding: it can withstand an ADC 600V/3mA/1Sec withstand voltage test, has a CLASS F insulation rating, and delivers an no-load speed of 31,800±10% RPM at a maximum current of 2.0A. Under load, it maintains a speed of 28,000±10% RPM, a current of 3.4A±10%, and an output torque of 0.0103N·m. In terms of mechanical performance, the motor has a vibration level ≤7m/s, noise ≤75dB/1m (when ambient noise ≤45dB), and backlash controlled within 0.2-0.01mm. Unspecified dimensional tolerances comply with GB/T1804-2000 m-class standards, ensuring high machining precision.
General Specification:
