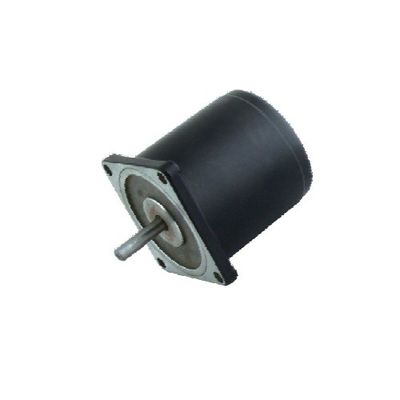

Single Phase PSC Induction Motor 110VAC / 220VAC Rated Stable Performance

Place of Origin China
Brand Name Retek
Certification CCC,UL, RoHS, Reach
Model Number SP70 Series
Minimum Order Quantity 1000pcs
Price Negotiable
Packaging Details 4PCS/Carton
Delivery Time 21days
Payment Terms T/T, Western Union
Supply Ability 5000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Power(W) 15W,20W,25W,30W Voltage(V) 110VAC/220VAC
Frequency(Hz) 50Hz Current(A) 0.18A~0.7A
Starting Torque(Nm) 0.08Nm~0.2Nm Rated Torque(Nm) 0.12Nm~0.2Nm
Rated Speed(RPM) 1200RPM/1250RPM Capacitor(uF/VAC) 1.2uF~6.0uF
Duty S1/S2
High Light

capacitor start motor

,

psc electric motor

Leave a Message
Product Description

Single Phase Induction AC Motor Frame 70mm Length 80mm and 88mm 15W and 30W options



Single Phase Induction AC Motor



Model: SP70 Series

Typical Applciation:

CNC, food machine, packing machine, prininting machine, textile machine, Logistcs equipment,
Metallurgical equipment, Rubber and plastic machine, Baverage machine, Construction machine,
Chemical machine, Environmental protection equipment, pharmaceutical equipment ,Ceramic machinery,
Conveying equipment, Electronic instrument, Tobacco machinery, Light industrial machinery, Production line and etc.



Drawing:



Figure 1: SP7080



Single Phase PSC Induction Motor 110VAC / 220VAC Rated Stable Performance 0





Technical Speifications:



Model

Output Power

(W)

Voltage

(V)

Frequency

(Hz)

Current

(A)

Starting Torque

(Nm)

Rated Torque

(Nm)

Rated Speed

(RPM)

Capacitor

(uF/VAC)

Duty Weight
(Kg)
SP7080YN15-1 15 110 50 0.4 0.11 0.122 1200 5/250 S1 1.1
SP7080YN15-2 15 220 50 0.18 0.081 0.122 1200 1.2/450 S1
SP7080YN20-1 20 220 50 0.22 0.11 0.162 1200 1.5/450 S2



For any specific requirements, please feel free to contact us today for more details!
