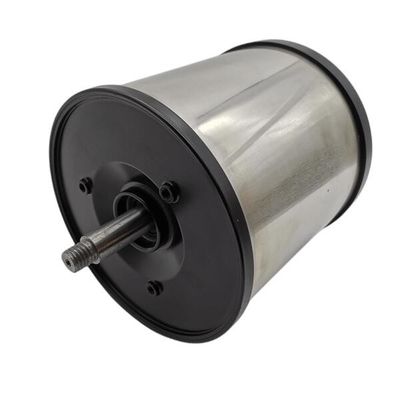

Tight Structure Single Phase Ac Motor , Capacitor Start Motor Rated Speed 1300RPM

Place of Origin China
Brand Name Retek
Certification CCC,UL, RoHS, Reach
Model Number SP90 Series
Minimum Order Quantity 1000pcs
Price $15
Packaging Details 2PCS/Carton
Delivery Time 21days
Payment Terms T/T, Western Union
Supply Ability 5000PCS/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Power(W) 60W, 90W Voltage(V) 110VAC/220VAC
Frequency(Hz) 50Hz Current(A) 0.54A~1.66A
Starting Torque(Nm) 0.38Nm~0.6Nm Rated Torque(Nm) 0.441Nm
Rated Speed(RPM) 1300RPM Capacitor(uF/VAC) 3.5uF~18.0uF
Duty S1/S2
High Light

permanent split capacitor motor

,

psc electric motor

Leave a Message
Product Description

Single Phase Induction AC Motor Frame 90mm Length 123mm and 138mm working duty S1 and S2





Single Phase Induction AC Motor



Model: SP90 Series

Typical Applciation: Gearmotor assembly, robotics, factory production automatic production lines and etc.



Drawing:



Tight Structure Single Phase Ac Motor , Capacitor Start Motor Rated Speed 1300RPM 0



Technical Speifications:



Model

Output Power

(W)

Voltage

(V)

Frequency

(Hz)

Current

(A)

Starting Torque

(Nm)

Rated Torque

(Nm)

Rated Speed

(RPM)

Capacitor

(uF/VAC)

Duty Weight
(Kg)
SP90123YY60-1 60 110 50 0.98 0.38 0.441 1300 15/250 S1 2.5
SP90123YN60-1 60 110 50 1.1 0.45 0.441 1300 18/250 S2
SP90123YY60-2 60 220 50 0.54 0.384 0.441 1300 3.5/450 S1
SP90123YN60-2 60 220 50 0.54 0.384 0.441 1300 3.5/450 S1
SP90123YN60-2 60 220 50 0.6 0.4 0.441 1300 4.0/450 S2
SP90138YY90-1 90 110 50 1.4 0.5 0.661 1300 20/250 S1 3.5
SP90138YN90-1 90 110 50 1.55 0.58 0.661 1300 25/250 S2
SP90138YY90-2 90 220 50 0.73 0.51 0.661 1300 5.5/450 S1
SP90138YN90-2 90 220 50 0.73 0.51 0.661 1300 5.5/450 S1
SP90138YN90-2 90 220 50 0.73 0.6 0.661 1300 6/450 S2

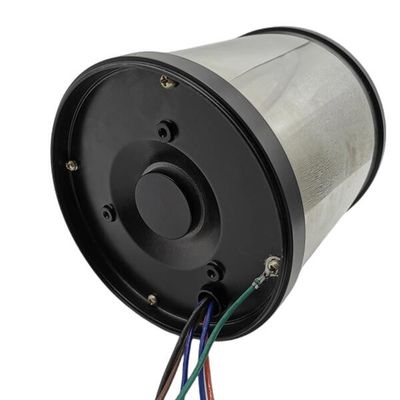

Tight Structure Single Phase Ac Motor , Capacitor Start Motor Rated Speed 1300RPM 1

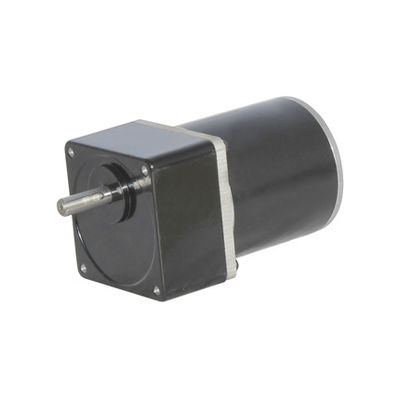

Tight Structure Single Phase Ac Motor , Capacitor Start Motor Rated Speed 1300RPM 2

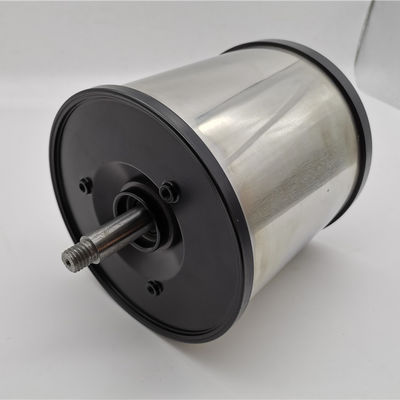

Tight Structure Single Phase Ac Motor , Capacitor Start Motor Rated Speed 1300RPM 3

Shipping:

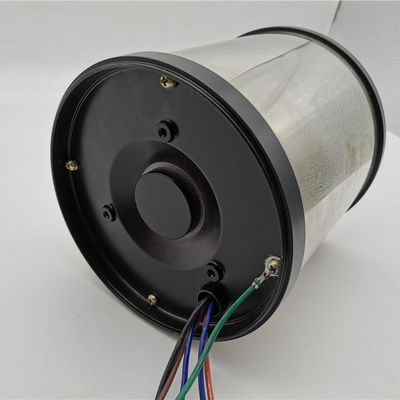

Tight Structure Single Phase Ac Motor , Capacitor Start Motor Rated Speed 1300RPM 4
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!



Our advantage:
1. Our products have a competitive advantage.
2. We have a team of professional engineers to solve various technical problems and provide you with more professional advice.
3. Good working environment and corporate cohesion.


Our service:
1. Your inquiry about our products or prices will be answered within 24 hours.
2. Well-trained, experienced staff answer all your questions in fluent English.
3. Check the goods before shipment.
4. We respect your feedback after receiving the goods.





Q1: What is our factory product range?
A: Stepper Motor, Brushless Motor, Servo Motor and AC Motor.etc
Q2: Can I get some samples?
A:We are honored to offer you samples for quality check.
Q3: Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
Q4: What's the delivery time?
A:It usually takes about 14 working days,but the exact delivery time might be different for different order or at different time.
Q5: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
Q6: What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.



Our company is a manufacturing company specializing in the production of motors. If you have any needs, please contact us, we will protect your sales area, design concept and all private information.
