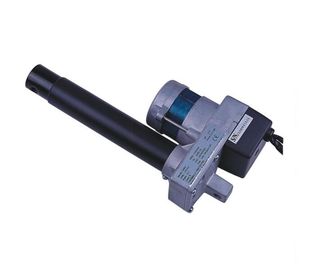

150W Power High Speed Linear Actuator With Sensor Installed GM64 Series

150W Power High Speed Linear Actuator With Sensor Installed GM64 Series

    • 150W Power High Speed Linear Actuator With Sensor Installed GM64 Series
    • 150W Power High Speed Linear Actuator With Sensor Installed GM64 Series
    • 150W Power High Speed Linear Actuator With Sensor Installed GM64 Series
  • 150W Power High Speed Linear Actuator With Sensor Installed GM64 Series

    Product Details:

    Place of Origin: China
    Brand Name: Retek
    Certification: CCC,UL
    Model Number: GM64 Series

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiable
    Packaging Details: 25PCS/Carton
    Delivery Time: 14days
    Supply Ability: 10000PCS/Month
    Contact Now
    Detailed Product Description
    Optional Voltage: DC 115V Powers: 150W
    Application: Chargable Tools, Automated Device Custom Made: Accept Custom-Made
    Pricing: Competitive Original: China

    GM64 Series Actuators for Dental Chair, Patient Beds, Automatic Doors and other Automated Devices





    Typical Application:

    Dental Chair, Patient Beds, Automatic Doors Treadmills, lifting chairs, lifting beds and others.



    Features:

    1. Inner tube: Iron

    2. Dustproof outer tube

    3. ACME screw

    4. Built-in thermal protection device (125℃)

    5. Built-in limit switches (factory preset)

    6. Optional stroke length

    7. Double protection devices

    8. Sensor installed

    9. Small body/Strong Force/Lower Noise



    Technical Data:

    1. Input Power:  (a) 110~120VAC (b) 220~230VAC

    2. Duty cycle: 10% (1 ON 9 OFF)

    3. Reduction Ratio: 32:1



    Model

    Voltage

    (VAC)

    Max. Static Load(kg) Max. dynamic load(kg) Speed(mm/sec) Current(A)
    No load Max. load No load Max. Load
    M306 110 400 180 3.50 2.90 0.70 0.80
    220 400 180 3.40 2.80 0.35 0.40
    M308 110 500 250 2.60 2.20 0.70 0.80
    220 500 250 2.50 2.10 0.35 0.40



    Drawing:

    150W Power High Speed Linear Actuator With Sensor Installed GM64 Series



    For custom made, please feel free to contact us today.
