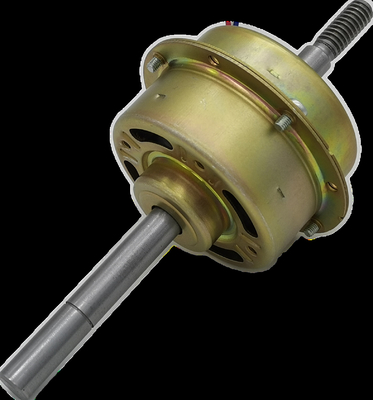

Metal Sheet Housing 12 Volt Air Vent BLDC Motor W7020
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOptional Voltage | 12VDC,12VDC/230VAC | Output Power | 15~100 Watts |
---|---|---|---|
Duty | S1 | Speed Range | Up To 4,000 Rpm |
Bearing Type | Sleeve Bearings, Ball Bearings Optional. | Pricing | Competitive |
Custom Made | Accept Custom-Made | Original | China |
High Light | Air Vent BLDC Motor,Metal Sheet 12v Bldc Motor,4000rpm 12 Volt Bldc Motor |
Cost-Effective Air Vent BLDC Motor-W7020
This W70 series brushless DC motor(Dia. 70mm) applied rigid working circumstances in automotive control and commercial use application.
It is designed particularly for economic demand customers for their fans, ventilators, and air purifiers.
Product introduction:
This brushless fan motor is designed for low cost air ventilators and fans, its housing is made by metal sheet with air vented feature and can be used under DC power source or AC power source as well connected with AirVent integrated controller.
Specification:
Voltage Range: |
12VDC,12VDC/230VAC |
Output Power | 15~100 watts |
Duty | S1 |
Speed Range |
up to 4,000 rpm |
Operational Temperature: | -20°C to +40°C |
Bearing Type |
sleeve bearings, ball bearings optional |
Insulation Grade | Class B,Class F |
Housing Type |
Air Ventilated, Metal Sheet |
Optional housing surface treatment |
#45 Steel, Stainless Steel |
Rotor feature |
Inner rotor brushless motor |
Application:
Blowers, air ventilators, HVAC, air coolers, standing fans, bracket fans and air purifiers and etc
Dimension:
Typical Performance:
Model | Speed Switch |
Performance | Controller Features | |||
Voltage (V) |
Current (A) |
Power (W) |
Speed (RPM) |
|||
ACDC Version Model: W7020-23012-420 |
1st. Speed | 12VDC | 2.443A | 29.3W | 947 | 1. Dual Voltage:12VDC/230VAC 2. Over voltage protection: 3. Three speeds control 4. Include the remote controller. (infrared ray control) |
2nd. Speed | 12VDC | 4.25A | 51.1W | 1141 | ||
3rd Speed | 12VDC | 6.98A | 84.1W | 1340 | ||
1st. Speed | 230VAC | 0.279A | 32.8W | 1000 | ||
2nd. Speed | 230VAC | 0.448A | 55.4W | 1150 | ||
3rd Speed | 230VAC | 0.67A | 86.5W | 1350 | ||
ACDC Version Model: W7020A-23012-418 |
1st. Speed | 12VDC | 0.96A | 11.5W | 895 | 1. Dual Voltage:12VDC/230VAC 2. Over voltage protection: 3. Three speeds control 4. Include the remote controller. (infrared ray control) |
2nd. Speed | 12VDC | 1.83A | 22W | 1148 | ||
3rd Speed | 12VDC | 3.135A | 38W | 1400 | ||
1st. Speed | 230VAC | 0.122A | 12.9W | 950 | ||
2nd. Speed | 230VAC | 0.22A | 24.6W | 1150 | ||
3rd Speed | 230VAC | 0.33A | 40.4W | 1375 | ||
ACDC Version Model: W7020A-23012-318 |
1st. Speed | 12VDC | 0.96A | 11.5W | 895 | 1. Dual Voltage:12VDC/230VAC 2. Over voltage protection: 3. Three speeds control 4. With rotation remote control 5. Include the remote controller. (infrared ray control) |
2nd. Speed | 12VDC | 1.83A | 22W | 1148 | ||
3rd Speed | 12VDC | 3.135A | 38W | 1400 | ||
1st. Speed | 230VAC | 0.122A | 12.9W | 950 | ||
2nd. Speed | 230VAC | 0.22A | 24.6W | 1150 | ||
3rd Speed | 230VAC | 0.33A | 40.4W | 1375 | ||
230VAC Version Model: W7020A-230-318 |
1st. Speed | 230VAC | 0.13A | 12.3W | 950 | 1. Dual Voltage:230VAC 2. Over voltage protection 3. Three speeds control 4. With rotation remote control function 5. Include the remote controller. (infrared ray control) |
2nd. Speed | 230VAC | 0.205A | 20.9W | 1150 | ||
3rd Speed | 230VAC | 0.315A | 35W | 1375 |
