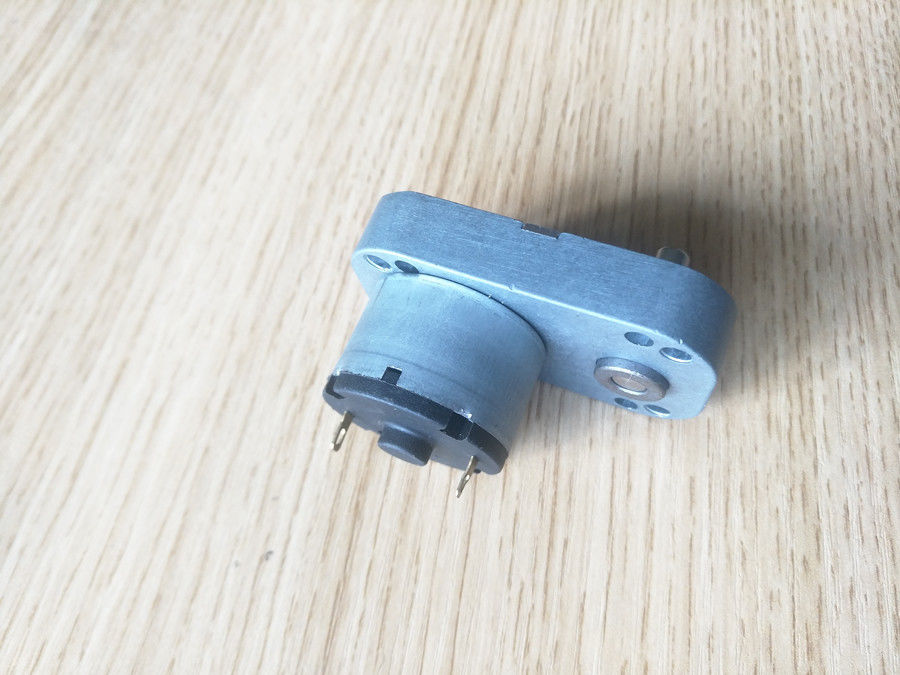

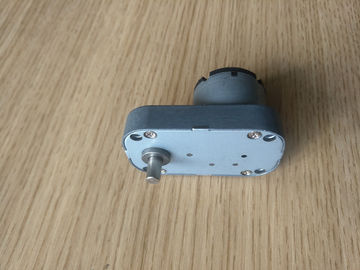

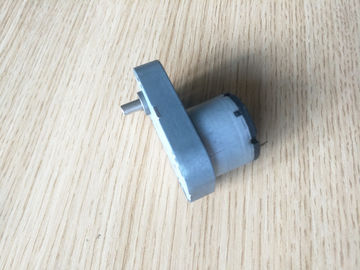

D3323G37 Right Angle Gear Motor DC Brush Commutation For Warning Lights

D3323G37 Right Angle Gear Motor DC Brush Commutation For Warning Lights

    • D3323G37 Right Angle Gear Motor DC Brush Commutation For Warning Lights
    • D3323G37 Right Angle Gear Motor DC Brush Commutation For Warning Lights
    • D3323G37 Right Angle Gear Motor DC Brush Commutation For Warning Lights
  • D3323G37 Right Angle Gear Motor DC Brush Commutation For Warning Lights

    Product Details:

    Place of Origin: China
    Brand Name: Retek
    Certification: CCC,UL
    Model Number: D3323G37

    Payment & Shipping Terms:

    Minimum Order Quantity: 100PCS
    Price: USD5~USD12.00
    Packaging Details: 150PCS/Carton
    Delivery Time: 14days
    Payment Terms: T/T, Western Union
    Supply Ability: 5000PCS/Month
    Contact Now
    Detailed Product Description
    Usage:: Home Appliance, Robot,vending Machine, Medcial Device Certification:: CE, UL, CCC
    Type:: Gear Motor Torque:: 0.3~15kgfcm
    Construction:: Permanent Magnet Commutation:: Brush
    Protect Feature: Totally Enclosed Speed(RPM): 1.1RPM~1000RPM
    Continuous Current:: Custom Made Output Power:: 0.9~2W
    Voltage(V): 3V,6V,9V,12V,18V,24V Efficiency:: IE 1
    Direction Of Rotor: CW/CCW Gearbox Material:: Metal
    Gearbox Length:: 22~29mm Gearbox Diameter:: 37mm
    Gearbox Ratio:: 1:6~1:2430 Shaft Material:: Carbon Steel Or Stainless Steel
    Shaft Type:: D-cut, Round Or With Hole

    37mm low rpm high torque 60rpm 100rpm 24v 12v dc gear motor used for Warning lights and Anti-theft electronic locks





    Packaging & Delivery

    Packaging Details

    1. B3B Corrugated Standard Export Carton or Styrofoam box or Blister Tray
    2. As customer's requested

    Delivery Time

    Shipped in 20 days after payment



    Typical Application:

    Gearmotor, linear actuator,power tool,automated devices



    Features:

    Low Noise, Long lifespan, Cost less and Save more for your benefits.



    D3323G37 Right Angle Gear Motor DC Brush Commutation For Warning Lights







    For custom made, please feel free to contact us today.
